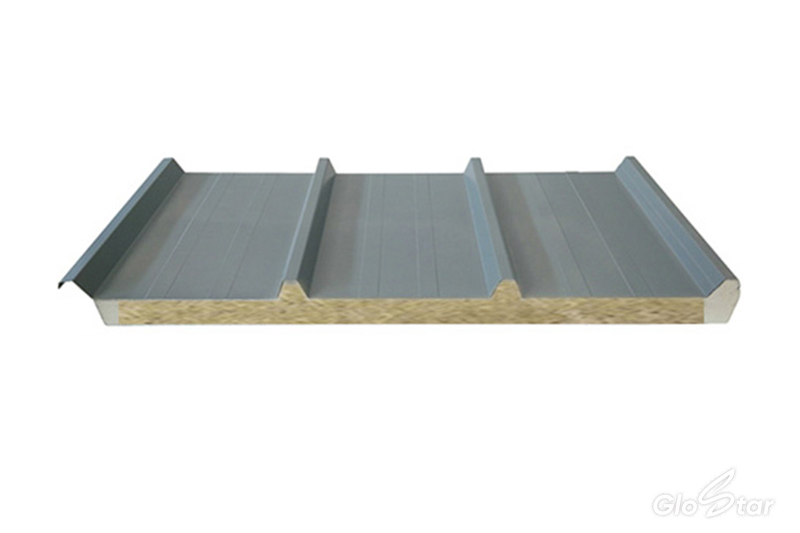

SR1000 Metal Thermal Insulated Roof System

Availability:
Quantity:
Inquire Add to Basket

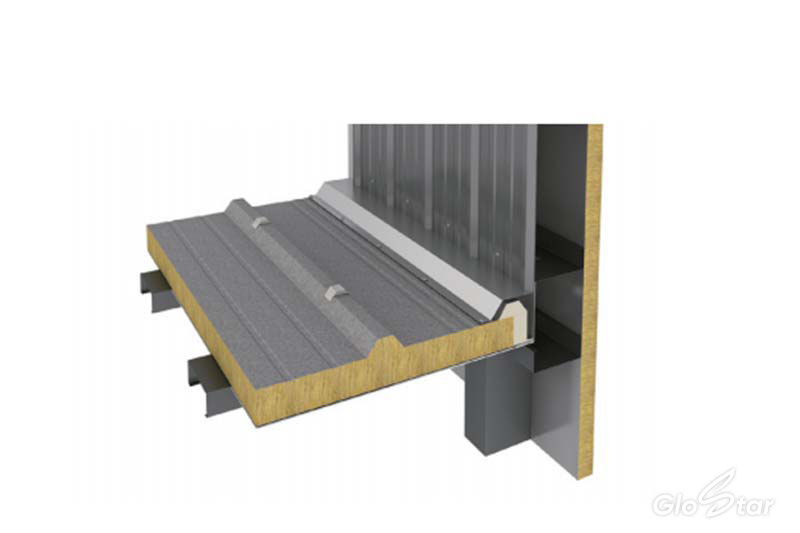

The composite panel roof system, formed by binding the outer steel sheets and the insulation core, integrates both insulation and waterproofing functions. The core material, filled with rock wool (with PU side-sealing) or glass wool (with PU side-sealing) along the edges, enhances the strength of the panels, ensuring their flatness and tight joints, while also facilitating installation. The tall ridges not only strengthen the load-bearing capacity of the panels but also, to a certain extent, evenly guide water flow. The overlapping and folding process at the female port ensures a tighter connection and prevents rusting on the edges. The unique waterproof cap accessory prevents corrosion caused by contact between the steel panel and screws, thus prolonging the lifespan of the system, reducing heat loss, and ensuring insulation effectiveness. The straightforward overlapping design simplifies installation and improves construction efficiency.
Product Description

Performance  features

1.The core material, filled with rock wool (with PU side-sealing) or glass wool (with PU side-sealing) along the edges, enhances the strength of the panels, ensuring their flatness and tight joints, while also facilitating installation.

2.The tall ridges not only strengthen the load-bearing capacity of the panels but also, to a certain extent, evenly guide water flow.

3.The tall ridges not only strengthen the load-bearing capacity of the panels but also, to a certain extent, evenly guide water flow.

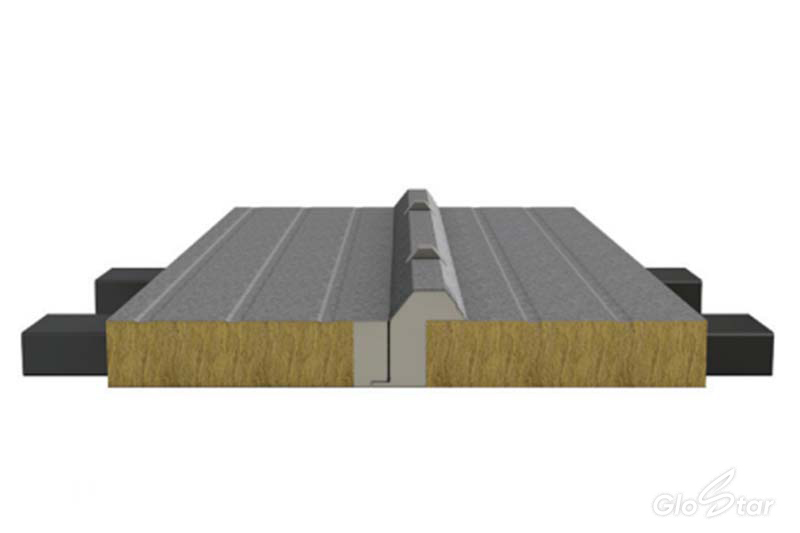

4.The overlapping and folding process at the female port ensures a tighter connection and prevents rusting on the edges, thus a prolonged lifespan of the system.

5.The straightforward overlapping design simplifies installation and improves construction efficiency.

Technical Specifications

Material Characteristics Table for SR1000 metal thermal insulated roof system

Size (mm)

Standard size:1000

Length:<15000

Standard thickness:50,60,75,80,100,150 (other customized)

Surface pattern

3 ridges

Skin thickness (mm)

Front steel sheet:0.5–0.7
Back steel sheet:0.4–0.6

Type of joint

Overlap joint

Core material type

PU and glass wool

PU and rock wool

Core material density （Kg/m³）

Glass wool:64

Rockwool:100–140

Flammability

Class A


Table of Load without extra support and thermal performance specifics for SR1000 metal thermal insulated roof system


Core material

Thickness(mm)

Type of support

Load（kN/m²）/rafter spacing(mm)

Panel weight

Thermal conductivity

0.5

1.0

1.5

2.0

2.5

3.0

Rock wool

50

Single-span /multi-span

5637

4264

3573

3124

2798

2545

15.97

0.76

75

7060

5305

4419

3843

3425

3100

18.81

0.53

100

8349

6250

5188

4498

3997

3607

21.65

0.40

150

10725

8023

6656

5767

5121

4620

27.33

0.27

Glass wool

50

Single-span /multi-span

5552

4158

4251

2995

2662

2403

13.41

0.74

75

6939

5155

4251

3663

3235

2904

14.97

0.52

100

8196

6060

4977

4272

3760

3365

16.52

0.39

150

10526

7777

6381

5473

4815

4306

19.64

0.27


Note: Calculations in the table are based on the following assumptions: rock wool of a density of 120Kg/m3, glass wool of a density of 64kg/m3,

thickness of front sheet 0.6mm, thickness of the back sheet 0.5mm, deflection span ratio L/150.
