Polyjoy IW Rock Wool Composite Panel series and the corresponding systems achieve an innovative and domestically pioneering full-fill rock wool process. Its outstanding fire resistance performance is combined with excellent thermal insulation properties. Glostar has significantly improved the design and production processes for the product by increasing the strength at the joints. On top of that, for improved installation precision and design effectiveness, we designed specific connectors and clamps. To ensure reliable and consistent product quality, the composite panels are factory-prefabricated. Convenient and quick installation and easy maintenance are also among its many advantages.

Product Description

Performance Features

  • The composite panels are 100% filled with rock wool for better thermal insulation.

  • A unique design is added to the nail fixing point for better stability.

  • Spaced reinforced beams are placed on the back of the panels for more strength and easier installation.

  • At the joints between panels, connectors and clamps are fitted for rigidity and stability.


Technical Specifications

Material Characteristics Table for IW rock wool composite panel

Size (mm)

standard size:1000

Optional board width:500-1200

Suggested length:<15000

Standard thickness:50,75,100,150,200,250

Surface pattern

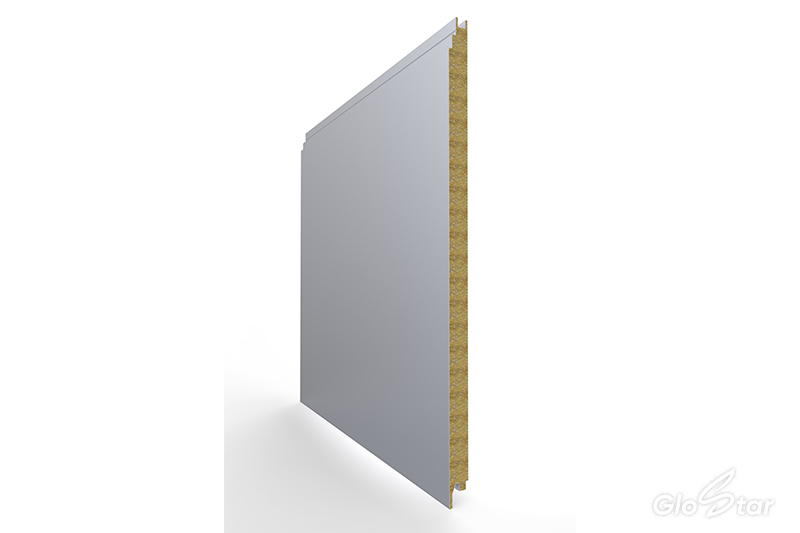

Mirror surface

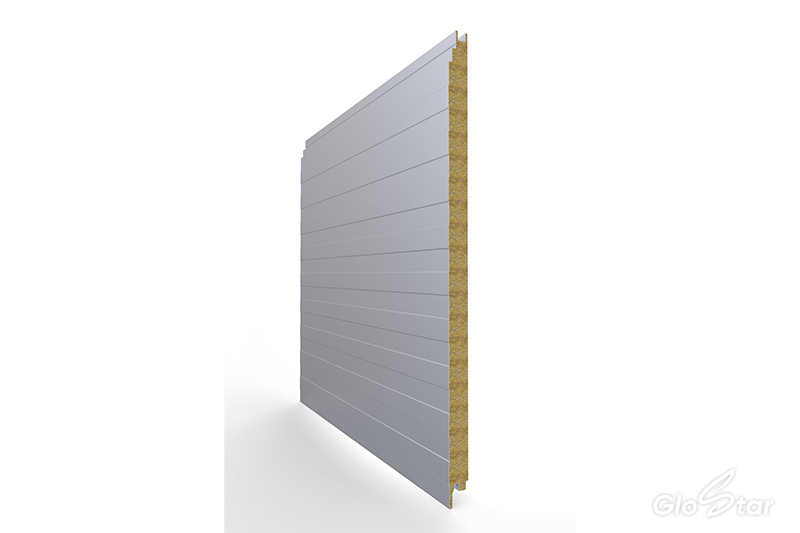

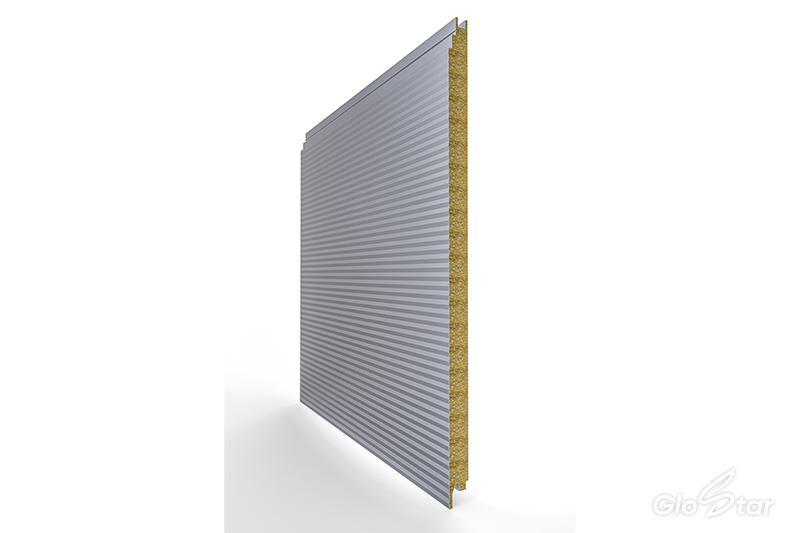

Ripple-like corrugation

Engrossed

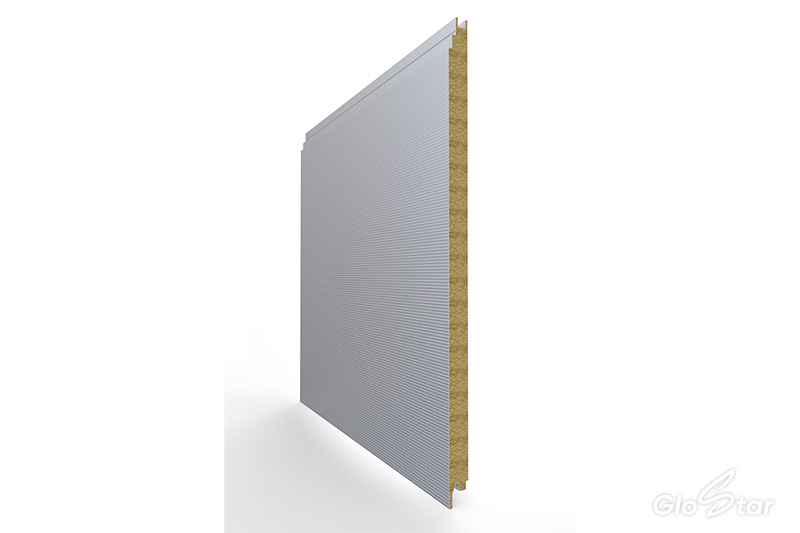

Mini corrugation

Skin thickness

Front steel sheet:0.6~0.8

Back steel sheet:0.4~0.6

Front aluminum sheet:0.7~1.0

Back aluminum sheet:0.4~0.7

Joint width

0.10,15,20,25,40




Core material

Rockwool


Core material density (kg/m³)


Rockwool:120~140




Flammability

Class A


Table of Load without extra support and thermal performance specifics for IW rock wool composite panel

Core material

Thickness

Type of support

Load/rafter spacing

Panel weight

Thermal conductivity

0.5

1.0

1.5

2.0

2.5

3.0

Rock wool

50

Single span / multi- span

5630

4202

3479

3008

2667

2402

16.16

0.76

75

7441

5584

4646

4037

3594

3250

19.16

0.53

100

9043

6801

5670

4935

4400

3985

22.16

0.40

150

11835

8894

7408

6444

5742

5197

28.16

0.27

Note: Calculations in the table are based on the following assumptions:rock wool of a density of 120Kg/m³,glass wool of a density of 64Kg/m³,thickness of front sheet 0.6mm,thickness of the back sheet 0.5mm,deflection span ratio L/100.
