While achieving an excellent thermal insulation performance, our prefabricated modular assembly curtain wall system does not need to sacrifice aesthetics, thanks to the perfect unison between composite materials, which provide flexible structural shape, and inorganic materials, which possess outstanding thermal characteristics.

Product Description

Performance Features

  • Clamping fixation,Independently replaceable parts ,recyclable.

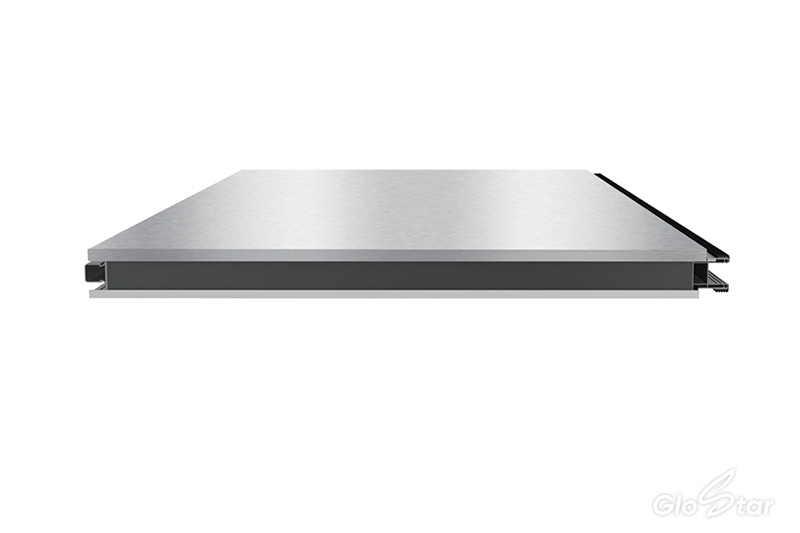

  • Box-shaped geometry with flanges on 4 sides,multiple sealings, flexible arrangement -vertically, horizontally, or in a slanted fashion,thermal break aluminum profile built inside


  • Box-shaped geometry with flanges on 4 sides and multiple sealings

    End openings are fully wrapped to enhance structural closure so that it is thermally broken, air-tight, and waterproof, and a longer service life is achieved.

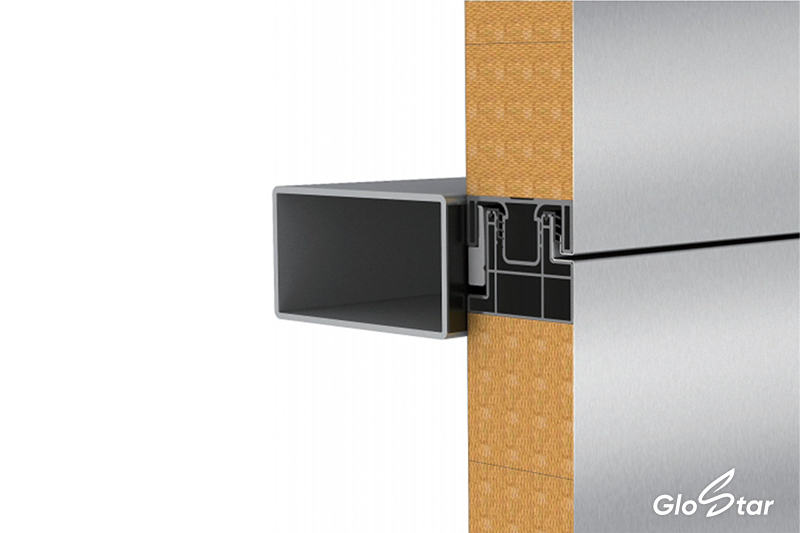

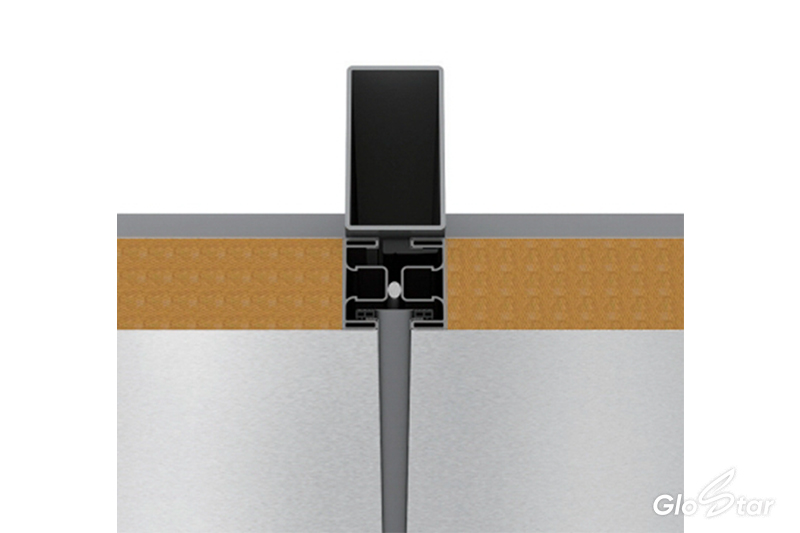

  • Clamping fixation

    Since the fastener does not penetrate the panel surface, damage caused by penetration is avoided, and the thermal expansion and contraction of the wall during temperature changes can also be accommodated.


  • Individual panels are independently replaceable and recyclable and can be placed in different orientations.

    It can be arranged in various ways: horizontally, vertically, and diagonally. Vertical installation allows for a patented top-down installation process.


  • Superior wind and impact resistance

    Customized profiles with built-in thermal breaks have higher wind resistance and high flatness and are highly resistant to plane deformation.


Technical Specifications

Panel thickness

weight (kg/m2)

Thermal conductivity (w/m2⦁k)

Flexural load- bearing capacity (span)

NS

60 / 80 / 100 / 120

15 / 17.6 / 20.25 / 22.9

0.6 / 0.46 / 0.38 / 0.32

2.6 / 3.7 / 4.8 / 5.7

HP

60 / 80 / 100 / 120

14.4 / 17.1 / 19.65 / 22.28

0.6 / 0.46 / 0.38 / 0.32

2.5 / 3.6 / 4.5 / 5.4

FP

60 / 80 / 100 / 120

15 / 17.6 / 20.25 / 22.9

0.62 / 0.48 / 0.4 / 0.34

2.55 / 3.65 / 4.65 / 5.55


Arameter

Specification

Standard Thickness

50mm, 60mm, 75mm, 80mm, 100mm, 120mm (Customizable)

Exterior Surface Thickness

0.7 - 1.2 mm

Back Surface Thickness

0.5 - 1.2 mm

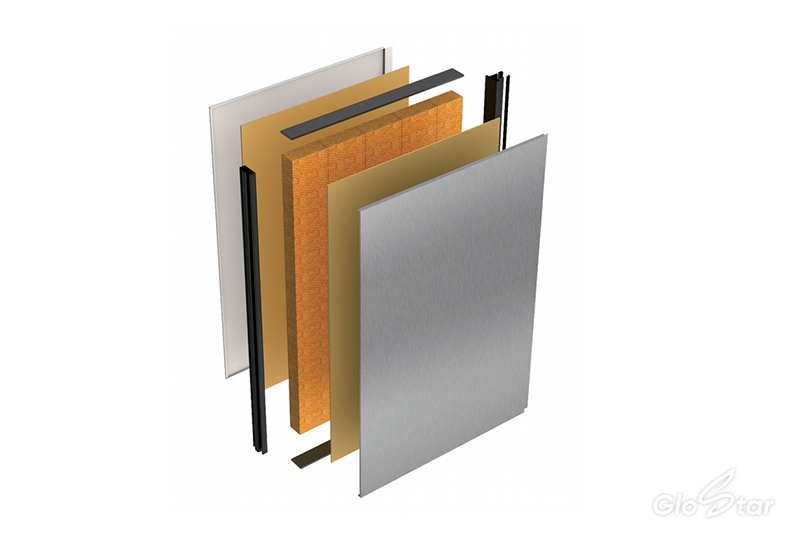

Surface Panel Material

Pre-coated aluminum sheet / Stainless steel / Pre-coated stainless steel / Titanium Zinc

Back Surface Material

Pre-coated aluminum sheet

Core Material

Premium hydrophobic rock wool

Adhesive

Two-component polyurethane adhesive

Coating Material

LUXACOTE / PVDF (Polyvinylidene Fluoride) / POLYESTER / Customizable

Color Options

RAL Classic colors (subject to design requirements)

Flame-spread Classification

Class I (BSI BS476 Section 7)

Surface Fire Resistance

Class A


Performance Feature

Technical Description

Formaldehyde Emission & Environmental Testing

Complies with the mandatory standard GB 18580-2001 "Indoor Decorating and Refurbishing Materials - Limit of Formaldehyde Emission of Man-made Boards and Their Products". Formaldehyde emission grade E1, suitable for direct indoor use.

Environmental Certification

National Commercial Standard Certification for Eco-Building Materials

High Temperature & Humidity Resistance

Tensile strength after exposure to high temperature and humidity (80°C, 80% RH, 24h) remains at 99.9% of the standard condition tensile strength.

Applicable Standards

GB/T 23932-2009 Building Insulated Sandwich Panels with Metal Facings

JG/T 453-2019 Technical Standard for Application of Metal-faced Sandwich Panels

JGJ 133-2001 Technical Code for Metal and Stone Curtain Wall Engineering
