The special shape design fully considers the appearance of the exterior wall and the tastes of designers and owners for what modern buildings should look like. At the same time, doors and windows can be fitted in without compromise.

Product Description

Performance Features

  • Upgraded fabrication process for better wind resistance

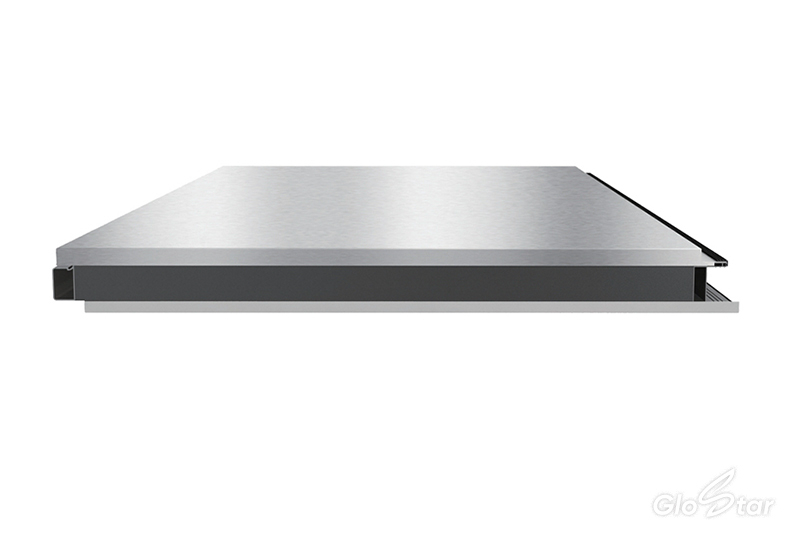

    Tough and durable panels and core materials are tightly glued together to deliver outstanding thermal performance and wind resistance.

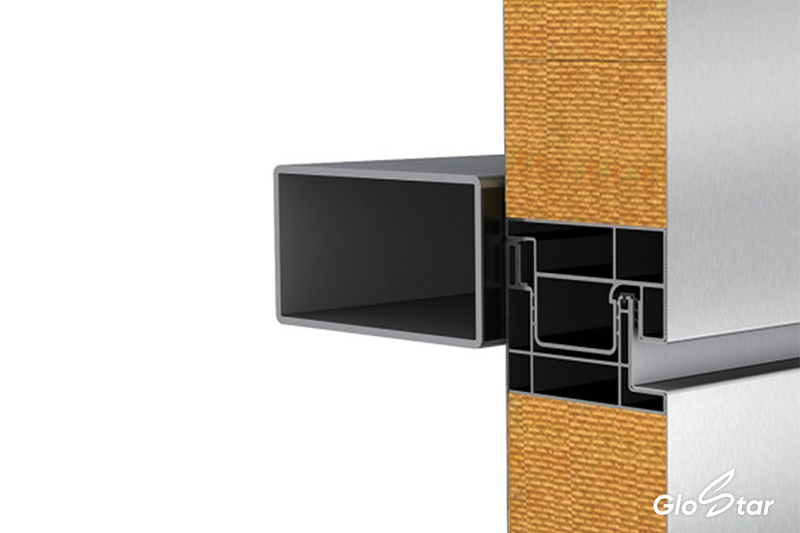

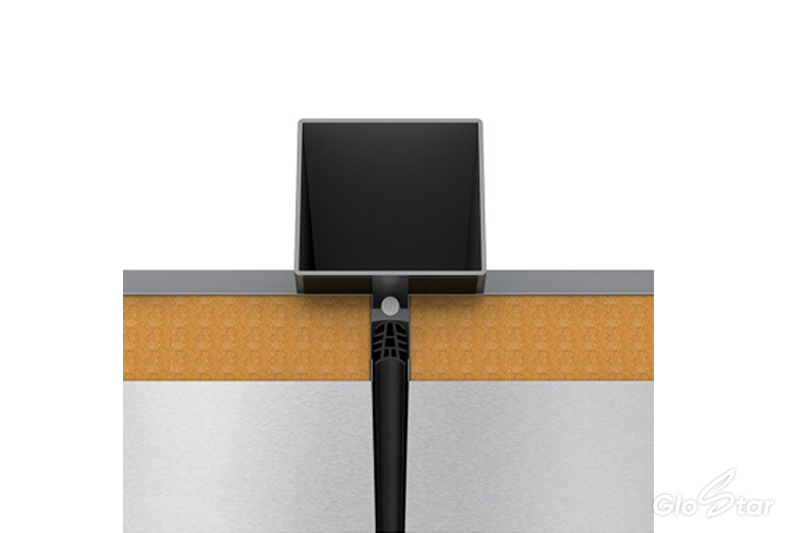

  • Empty chambers are enclosed inside the thermal break aluminum profiles for sound deafening effect.

    Rigid structure, great surface flatness, vertical isotherm structure and much less heat conduction.


  • Light and yet elegant, easy for designers to handle.

    HP series can accommodate different types of decorative effects and are inherently environmentally friendly.


Technical Specifications

Panel thickness

weight (kg/m2)

Thermal conductivity (W/m2·k)

Flexural load- bearing capacity (span)

NS

60 / 80 / 100 / 120

15 / 17.6 / 20.25 / 22.9

0.6 / 0.46 / 0.38 / 0.32

2.6 / 3.7 / 4.8 / 5.7

HP

60 / 80 / 100 / 120

14.4 / 17.1 / 19.65 / 22.28

0.6 / 0.46 / 0.38 / 0.32

2.5 / 3.6 / 4.5 / 5.4

FP

60 / 80 / 100 / 120

15 / 17.6 / 20.25 / 22.9

0.62 / 0.48 / 0.4 / 0.34

2.55 / 3.65 / 4.65 / 5.55



Arameter

Specification

Standard Thickness

50mm, 60mm, 75mm, 80mm, 100mm, 120mm (Customizable)

Exterior Surface Thickness

0.7 - 1.2 mm

Back Surface Thickness

0.5 - 1.2 mm

Surface Panel Material

Pre-coated aluminum sheet / Stainless steel / Pre-coated stainless steel / Titanium Zinc

Back Surface Material

Pre-coated aluminum sheet

Core Material

Premium hydrophobic rock wool

Adhesive

Two-component polyurethane adhesive

Coating Material

LUXACOTE / PVDF (Polyvinylidene Fluoride) / POLYESTER / Customizable

Color Options

RAL Classic colors (subject to design requirements)

Flame-spread Classification

Class I (BSI BS476 Section 7)

Surface Fire Resistance

Class A



Performance Feature

Technical Description

Formaldehyde Emission & Environmental Testing

Complies with the mandatory standard GB 18580-2001 "Indoor Decorating and Refurbishing Materials - Limit of Formaldehyde Emission of Man-made Boards and Their Products". Formaldehyde emission grade E1, suitable for direct indoor use.

Environmental Certification

National Commercial Standard Certification for Eco-Building Materials

High Temperature & Humidity Resistance

Tensile strength after exposure to high temperature and humidity (80°C, 80% RH, 24h) remains at 99.9% of the standard condition tensile strength.

Applicable Standards

GB/T 23932-2009 Building Insulated Sandwich Panels with Metal Facings

JG/T 453-2019 Technical Standard for Application of Metal-faced Sandwich Panels

JGJ 133-2001 Technical Code for Metal and Stone Curtain Wall Engineering
