The agile and concise streamlined panel design, carefully crafted, integrates high-strength panels with core materials seamlessly and is able to reflect the perceptions of designers and owners about what a modern architecture should look like. The product can adapt to various installation environments while achieving outstanding quality and unique effects on the wall surface.

Product Description

Performance Features

  • Exceptional and more energy efficient

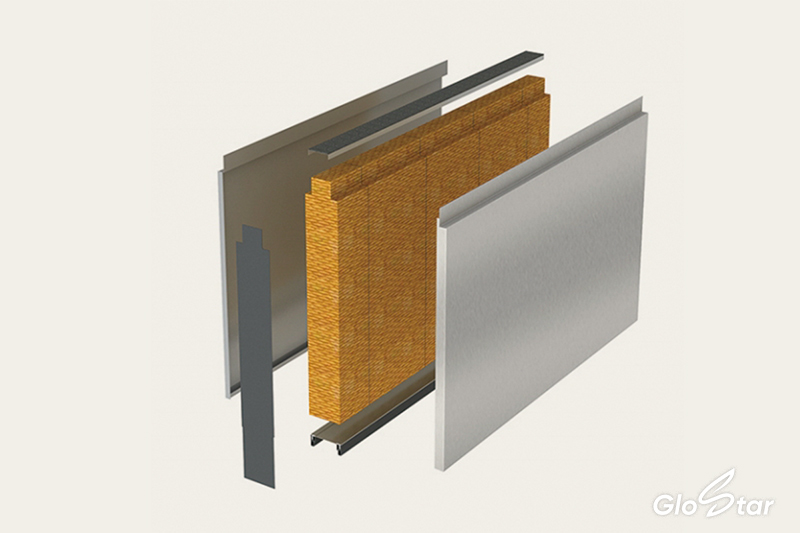

    The core material is tightly sealed between surface panels to ensure thermal insulation. In addition, multiple seal rubbers are built inside for better air and water tightness, potentially resulting in better energy efficiency.


  • Thermal break aluminum serves as a foundation for outstanding thermal performance

    The whole panel is surrounded by thermal break aluminum profiles which prevent heat-conducting channels.

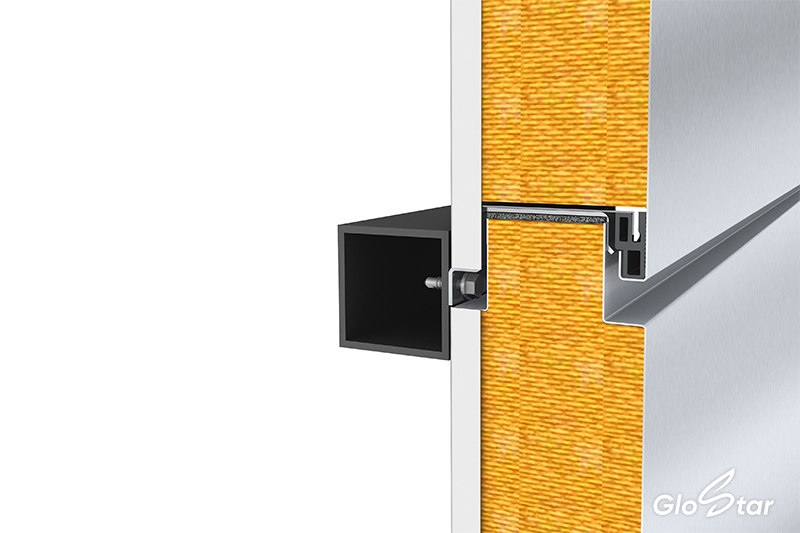

  • Fixed by slide rail versatile forms

    Thanks to the penetration-free installation, a certain amount of thermal expansion and contraction is permitted, ensuring perfect flatness under all weather conditions.


Technical Specifications

Panel thickness

weight (kg/m2)

Thermal conductivity (W/m2·k)

Flexural load- bearing capacity (span)

NS

60 / 80 / 100 / 120

15 / 17.6 / 20.25 / 22.9

0.6 / 0.46 / 0.38 / 0.32

2.6 / 3.7 / 4.8 / 5.7

HP

60 / 80 / 100 / 120

14.4 / 17.1 / 19.65 / 22.28

0.6 / 0.46 / 0.38 / 0.32

2.5 / 3.6 / 4.5 / 5.4

FP

60 / 80 / 100 / 120

15 / 17.6 / 20.25 / 22.9

0.62 / 0.48 / 0.4 / 0.34

2.55 / 3.65 / 4.65 / 5.55


Arameter

Specification

Standard Thickness

50mm, 60mm, 75mm, 80mm, 100mm, 120mm (Customizable)

Exterior Surface Thickness

0.7 - 1.2 mm

Back Surface Thickness

0.5 - 1.2 mm

Surface Panel Material

Pre-coated aluminum sheet / Stainless steel / Pre-coated stainless steel / Titanium Zinc

Back Surface Material

Pre-coated aluminum sheet

Core Material

Premium hydrophobic rock wool

Adhesive

Two-component polyurethane adhesive

Coating Material

LUXACOTE / PVDF (Polyvinylidene Fluoride) / POLYESTER / Customizable

Color Options

RAL Classic colors (subject to design requirements)

Flame-spread Classification

Class I (BSI BS476 Section 7)

Surface Fire Resistance

Class A


Performance Feature

Technical Description

Formaldehyde Emission & Environmental Testing

Complies with the mandatory standard GB 18580-2001 "Indoor Decorating and Refurbishing Materials - Limit of Formaldehyde Emission of Man-made Boards and Their Products". Formaldehyde emission grade E1, suitable for direct indoor use.

Environmental Certification

National Commercial Standard Certification for Eco-Building Materials

High Temperature & Humidity Resistance

Tensile strength after exposure to high temperature and humidity (80°C, 80% RH, 24h) remains at 99.9% of the standard condition tensile strength.

Applicable Standards

GB/T 23932-2009 Building Insulated Sandwich Panels with Metal Facings

JG/T 453-2019 Technical Standard for Application of Metal-faced Sandwich Panels

JGJ 133-2001 Technical Code for Metal and Stone Curtain Wall Engineering
