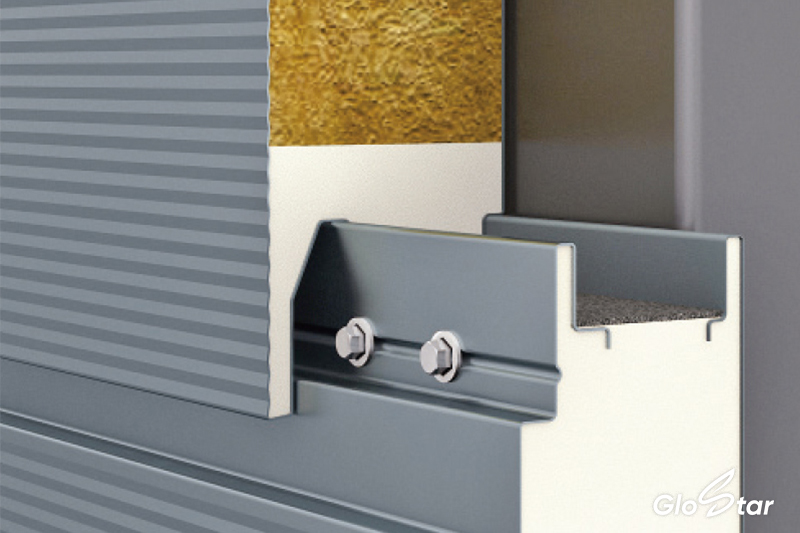

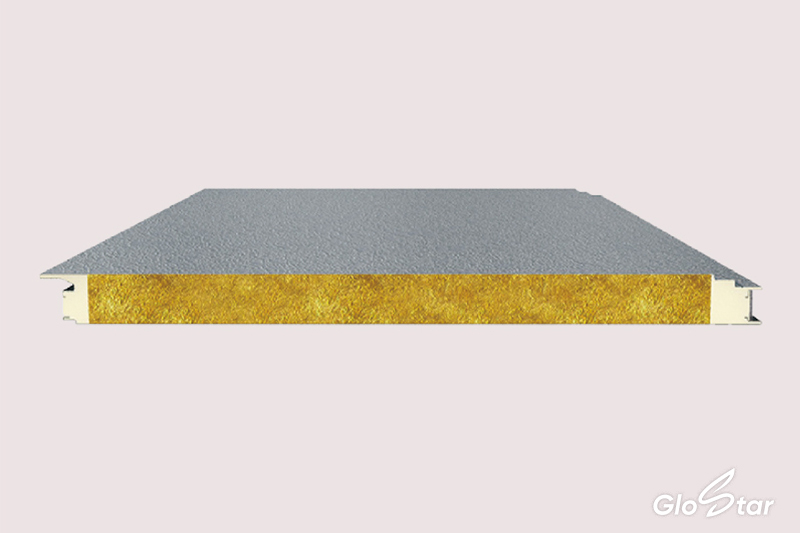

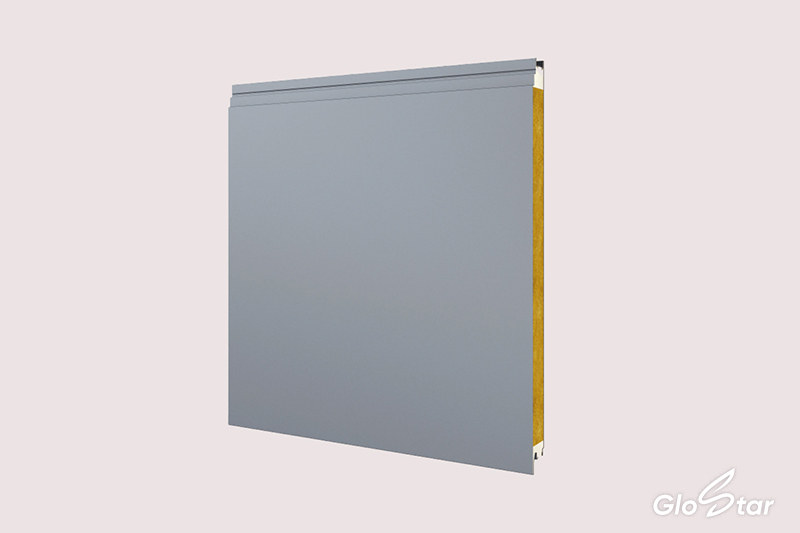

IW PU edge-sealed tongue and groove composite panel deploys the excellent waterproof properties of polyurethane, and by working together with rock wool, the new product manages to avoid the drawbacks associated with traditional panels. These panels excel significantly in waterproofing, thermal insulation, sound absorption, and raw material utilization. They are suitable for interior wall partitions and suspended ceilings.

Product Description

Technical Specifications

 Fire Resistance & Thermal Insulation

Provides high-efficiency thermal insulation utilizing non-combustible or flame-retardant core materials to meet fire safety requirements. The interlocking joint system and detailed node design effectively prevent thermal bridging.

Structural Integrity & Durability

PU side sealing enhances overall panel strength, facilitates installation, and provides improved resistance to moisture.

 Aesthetic Appeal & Dimensionality

Concealed fastener connections combined with a diverse color range give buildings an attractive and visually striking appearance.


Material Characteristics Table IW PU edge-sealed tongue and groove composite panel

Size (mm)

Standard size:1000

Optional width:500-1200

length:<15000

Standard thickness:50,75,100,150,200,250

Surface pattern

Mirror surface

Ripple-like corrugation

Engrossed

Mini corrugation

Skin thickness (mm)

Front steel sheet:0.5-0.8

Back steel sheet:0.4-0.6

Front aluminum sheet:0.7-1.0

Back aluminum sheet:0.4-0.7

Joint width (mm)

0,10,15,20,25,40


Core material type

PU and glass wool

PU and rock wool

Core material density (Kg/m3)

Glass wool:64

Rockwool:120-140

Flammability

Class A


Table of Load without extra support and thermal performance specifics for IW PU edge-sealed tongue and groove composite panel

Core material

Thickness

Type of support

Load/rafter spacing

Panel weight

Thermal conductivity

0.5

1.0

1.5

2.0

2.5

3.0

Rock wool

50

Single-span /multi-span

5652

4217

3490

3018

2674

2408

15.88

0.76

75

7470

5605

4662

4050

3604

3259

18.72

0.53

100

9079

6827

5689

4951

4414

3996

21.56

0.40

150

11882

8927

7434

6465

5759

5212

27.24

0.27

Glass wool

50

Single-span /multi-span

5543

4082

3340

2857

2507

2237

13.32

0.74

75

7339

5442

4480

3854

3399

3048

14.88

0.52

100

8925

6635

5475

4720

4172

3747

16.44

0.39

150

11677

8673

7150

6159

5439

4882

19.55

0.27

Note: Calculations in the table are based on the following assumptions: rock wool of a density of 120Kg/m3, glass wool of a density of 64kg/m3, thickness of front sheet 0.6mm, thickness of the back sheet 0.5mm, deflection span ratio L/100.

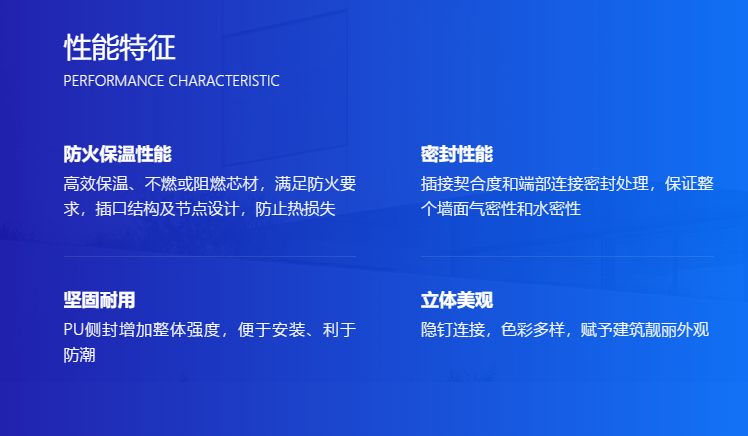

Performance Characteristics
