PVR1000 Photovoltaic Metal Thermal Insulated Roofing System

loading

PVR1000 Photovoltaic Metal Thermal Insulated Roofing System PVR1000 Photovoltaic Metal Thermal Insulated Roofing System
PVR1000 Photovoltaic Metal Thermal Insulated Roofing System PVR1000 Photovoltaic Metal Thermal Insulated Roofing System
PVR1000 Photovoltaic Metal Thermal Insulated Roofing System PVR1000 Photovoltaic Metal Thermal Insulated Roofing System
PVR1000 Photovoltaic Metal Thermal Insulated Roofing System PVR1000 Photovoltaic Metal Thermal Insulated Roofing System
PVR1000 Photovoltaic Metal Thermal Insulated Roofing System PVR1000 Photovoltaic Metal Thermal Insulated Roofing System

PVR1000 Photovoltaic Metal Thermal Insulated Roofing System

Availability:
Quantity:
Inquire Add to Basket

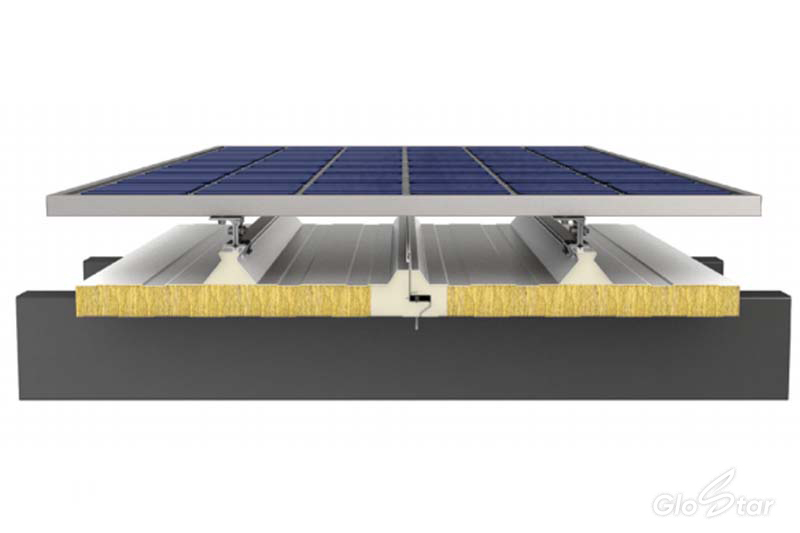

PVR1000 roofing system uses a seamer or seam locker machine to interlock adjacent metal roof panels longitudinally to form a tightly connected rigid roofing system. Special non-penetrating conversion fixtures are employed for installing solar modules, snow guards, or hurricane protection devices to meet various functional requirements.
Product Description

Performance  features

Feature

Description

360° Standing Seam Connection

Features a hidden interlocking seam that provides excellent waterproofing, anti-capillary protection, and wind uplift resistance.

Rapid and Convenient Installation

The mechanical seaming process is automated. An integrated anti-capillary groove within the seam ensures optimal system tightness.

Unique, High-Strength Concealed Clip System

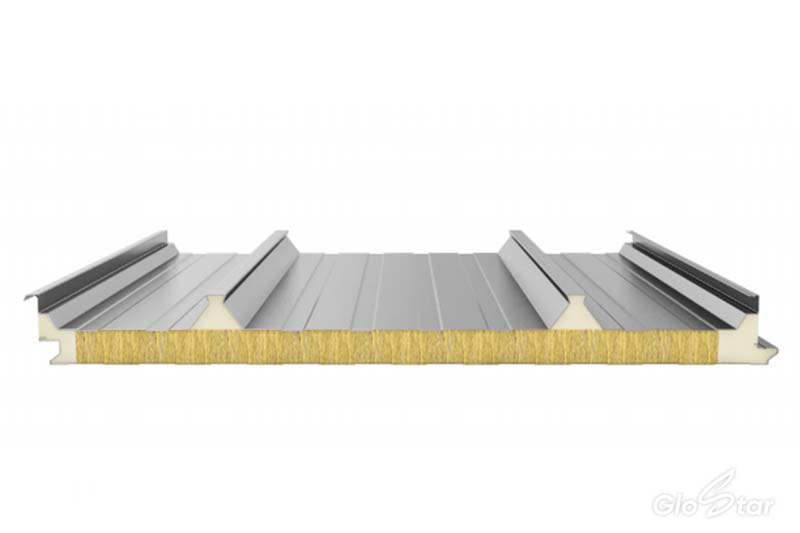

The design incorporates three high trapezoidal ribs and press-formed stiffening ribs on both the top and bottom panels. This significantly enhances panel strength and increases the roof's load-bearing capacity, without requiring penetrations through the roof surface. The system is engineered to withstand wind, frost, rain, snow, and negative pressure loads.

Versatile and Safe Applications

Allows for the installation of solar PV systems, snow retention systems, or typhoon-resistant devices as needed. These can be installed without penetrating the roof cladding, maintaining panel integrity and weathertightness, and mitigating the risk of lightning strike damage.


Material Characteristics Table for PVR1000 photovoltaic metal thermal insulated roof system

Size (mm)

Standard size:1000

Length:<15000

Standard thickness:50,60,75,80,100,150 (other customized)

Surface pattern

3 ridges

Skin thickness (mm)

Front steel sheet:0.5-0.8

Back steel sheet:0.4-0.6

Type of joint

Adjacent edges are vertically rolled by 360°to form an interlocked seam

Core material type

PU and glass wool

PU and rock woo

Core material density （Kg/m³）

Glass wool:64

Rockwool:100-140

Flammability

Class A


Table of Load without extra support and thermal performance specifics for  PVR1000 photovoltaic metal thermal insulated roof system

Core material


Thickness（mm）

Type of support

Load（KN/m²）/rafter spacing（mm）


Panel weight（kg/m²）

Thermal conductivity（W/m²k）

0.5

1.0

1.5

2.0

2.5

3.0

Rock wool

50

Single-span /multi-span

5825

4403

3688

3223

2886

2623

16.62

0.76

75

7259

5450

4537

3944

3512

3177

19.47

0.53

80

7528

5647

4696

4079

3629

3281

20.03

0.50

100

8561

6403

5311

4602

4085

3685

22.31

0.40

120

9545

7129

5906

5111

4533

4085

24.58

0.34

150

10967

8195

6793

5882

5219

4705

27.99

0.27

Glass wool

50

Single-span /multi-span

5736

4293

3563

3089

2744

2476

14.06

0.74

75

7133

5294

4362

3756

3315

2974

15.62

0.52

80

7394

5482

4511

3880

3422

3068

15.93

0.49

100

8402

6206

5091

4366

3840

3434

17.18

0.39

120

9364

6905

5656

4844

4255

3800

18.43

0.33

150

10760

7940

6508

5577

4901

4380

20.30

0.27


Note: Calculations in the table are based on the following assumptions: rock wool of a density of 120Kg/m3, glass wool of a density of 64kg/m3,

thickness of front sheet 0.6mm, thickness of the back sheet 0.5mm, deflection span ratio L/150.
