China Factory Direct 360° Standing Seam BIPV Solution 25+ Year Lifespan Dual Waterproofing Free Sample CE Certified
PVMR1025 BIPV Solution – Standing Seam Solar Roof System
360° Standing Seam · Continuous Length · Dual Waterproofing · Wind Uplift Resistant · 25+ Year Lifespan · Free Design Consultation
360° Standing Seam Pre-applied sealant, anti-capillary groove, superior waterproofing Weathertight
Continuous Length Roll-formed on site, no transverse joints, reduced leakage points No Laps
Dual Waterproofing Primary seam seal + secondary module coverage Double Protection
PV Ready Non-penetrating clips for solar modules, snow retention No Penetration
25+ Year Lifespan Roof and PV system matched lifespan, no secondary replacement Longevity

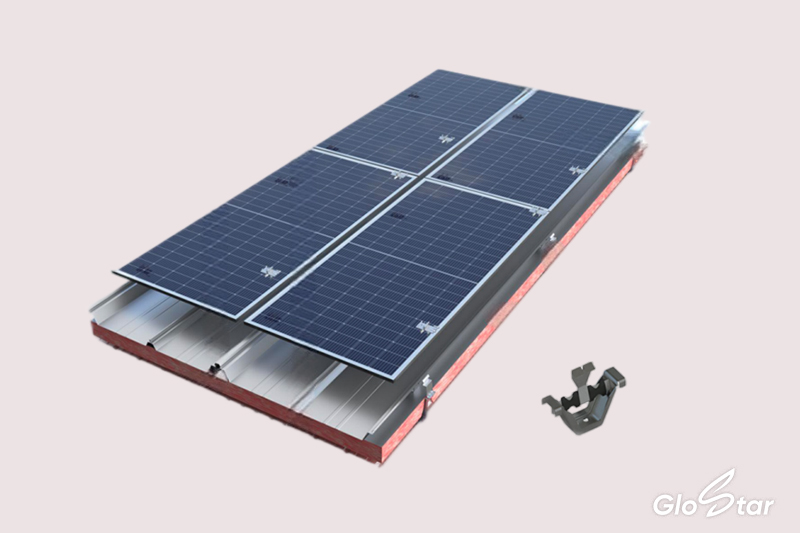

PVMR1025 – Building Integrated Photovoltaic (BIPV) Solution
The PVMR1025 BIPV solution is a comprehensive standing seam solar roof system that integrates photovoltaic power generation with building functions. It features 360° standing seam technology with pre-applied sealant and anti-capillary groove, providing exceptional waterproofing and wind uplift resistance. The system is roll-formed on site for continuous length without transverse joints, significantly reducing leakage risks. As a solar ready metal roofing solution, it supports direct installation of solar modules using non-penetrating clips.
Business Models – Flexible Partnership Options
Self-Investment / EPC Owner invests. Glostar provides turnkey EPC service: design, procurement, construction, and O&M support. Owner receives all energy savings and carbon credits.
Investor-Owned Third-party investor owns the system. Owner purchases electricity at a discounted rate. No upfront investment, immediate savings on energy costs.
PV Contractor Model Glostar supplies PVMR1025 roofing system to PV contractors. Contractors handle module procurement and installation. Complete system solution with配件 support.
Why Choose PVMR1025 BIPV Solution?
Policy-Driven Opportunity
China's "dual carbon" goals and nationwide pilot program for distributed PV require 30-50% rooftop coverage for industrial/commercial buildings. PVMR1025 helps you comply and benefit.
Significant Cost Reduction
Reduce electricity costs by 20%. Lower indoor temperature by 3-5°C, saving air conditioning energy. Avoid summer peak load curtailment. Carbon trading adds additional revenue.
Superior Waterproofing Continuous length from ridge to eave – no transverse laps. Pre-applied sealant during roll-forming. 360° lock seam with butyl rubber compression. Plus secondary waterproofing from module coverage.
Related:
Standing Seam Metal Roof MR468 Wind Uplift Resistance
Mid-support brackets reduce bearing area. Clamps act as wind clips. Mechanical fixed system ensures stability even in typhoon-prone regions.
Matched Lifespan – 25+ Years High-standard zinc-aluminum-magnesium coated steel or aluminum. Global-leading PV modules with 25+ year power warranty. One installation, one lifecycle – no secondary replacement costs.
Related:
SolarMetal Roof PVR1000 Factory Direct – Source Supply CE certified, smart production with 6,000m² daily capacity. Two manufacturing bases covering 60,000m². Exporting to 50+ countries. Full logistics support with installation guidance.
Related:
Site Assembled Roof Panel Explore Our Complete Building Solutions
Beyond the PVMR1025 BIPV Solution, Glostar offers a full range of roofing and facade solutions to meet your project needs:

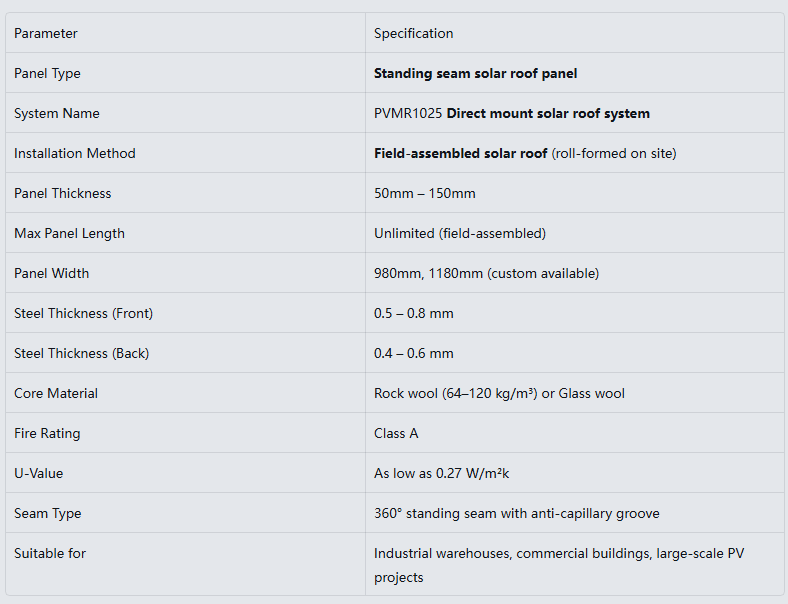

Technical Specifications – PVMR1025 System
| Parameter | Specification |
| System Type | PVMR1025 Standing Seam Solar Roof System |
| Seam Technology | 360° standing seam with anti-capillary groove |
| Installation | Field-assembled, roll-formed on site |
| Max Panel Length | Unlimited (no transverse joints) |
| Panel Width Options | 980mm, 1025mm effective width, 1180mm custom |
| Panel Thickness | 50mm, 75mm, 80mm, 100mm, 120mm, 150mm |
| Steel Thickness | Front: 0.5-0.8mm, Back: 0.4-0.6mm |
| Core Material | Rockwool (64-120 kg/m³) or Glass wool |
| Fire Rating | Class A (non-combustible) |
| U-Value | As low as 0.27 W/m²k |
| Waterproofing | Primary seam seal + secondary module coverage |
| Durability | 25+ years (roof and PV system matched) |
System Accessories – Complete Solution
Edge Bracket – PVMR1025-EA (H20)
Material: G350 galvanized steel, 304 stainless steel, Q235. Assembled sliding bracket. Located at panel edges. Provides wind uplift resistance and sliding capability.
Mid Bracket – PVMR1025-M (H20)
Material: G350 galvanized steel. Located below panel mid-rib. Supports and fixes panels without fasteners – direct insertion connection.
Ridge End Cap – PVMR1025-R
Material: G300-G350 coated steel. Located at ridge side. Provides waterproofing and aesthetic finish at ridge.
Eave End Cap – PVMR1025-W
Material: G300-G350 coated steel. Located at eave side. Provides waterproofing and aesthetic finish at eave.
Aluminum Press Strip – PVMR1025
Material: Aluminum plate. Located at panel and end cap connections. Ensures excellent sealing performance.
Ridge Back Plate / Lap Back Plate
Material: G300-G350 coated steel. Provides connection between panels and ridge/eave caps. Ensures structural integrity.
Applications of PVMR1025 BIPV Solution
Industrial Plants Factories and manufacturing facilities
Logistics Centers Distribution hubs and warehouses
Gymnasiums & Sports Halls Large-span public buildings
Railway Stations Transportation hubs
Large-Scale PV Projects Commercial and industrial rooftops
Cold Storage Temperature-controlled facilities
Service Process – From Inquiry to Operation
Site Survey
→ Preliminary Design
→ Financial Proposal
→ Contract Signing
→ Construction
→ Grid Connection
→ O&M Support
Frequently Asked Questions
Q: What is the advantage of 360° standing seam technology? A: The 360° standing seam with anti-capillary groove and pre-applied sealant provides superior waterproofing and wind uplift resistance. It is ideal for harsh weather conditions.
Q: How does the dual waterproofing system work? A: Primary waterproofing comes from the 360° lock seam with butyl rubber compression. Secondary waterproofing is provided by the solar modules covering the seam area, eliminating leakage risks.
Q: What business models are available? A: We offer three models: (1) Self-investment/EPC – owner invests, we provide turnkey service. (2) Investor-owned – third-party owns system, owner buys discounted power. (3) PV contractor – we supply roofing system to contractors.
Q: What is the system lifespan? A: Both the metal roof and PV system are designed for 25+ years. Matched lifespan means no secondary replacement cost.
Q: Can I get a free sample? A: Yes, we provide free samples for qualified projects. Contact us to request your sample.
60,000 m² Smart Factory 6,000 m² Daily Output 50+ Countries Export ISO 9001 & CE CNAS Lab Tested
Get Your PVMR1025 BIPV Solution Quote Today
Free Design Consultation · Custom Specifications · Full Installation Support · Factory Direct Price
