Standing Seam Metal Roof Panel -MR468

Glostar MR468 standing seam metal roof panel is a high-performance cold formed steel roof panel engineered for steel structure building roof applications. As a field assembled metal roof system, it is roll-formed on site, allowing unlimited panel length and eliminating transverse joints for superior waterproofing. This bare metal roof panel features 360° standing seam technology with pre-applied sealant, providing exceptional wind uplift resistance and weathertightness for large-span steel structure building roof projects.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button
Standing Seam Metal Roof Panel MR468 – Cold Formed Steel Roof Panel | Glostar
Phone WhatsApp Email Facebook YouTube
China Factory Direct 360° Standing Seam Field Assembled Unlimited Length Sliding Support Free Sample CE Certified

Standing Seam Metal Roof Panel MR468 – Cold Formed Steel Roof Panel

360° Standing Seam · Field Assembled · Unlimited Length · 70mm Rib Height · Sliding Support System · Free Design Consultation
MR468 Standing Seam Metal Roof Panel – Cold Formed Steel Roof Panel MR468 Standing Seam Metal Roof Panel – Installation
360° Standing Seam Pre-applied sealant, anti-capillary groove, superior waterproofing Weathertight
Field Assembled Roll-formed on site, unlimited length, no transverse joints No Length Limit
Bare Metal Panel 70mm rib height, transverse stiffening ribs, high load capacity High Strength
Sliding Support Accommodates thermal expansion and contraction Thermal Movement
Prepunched Design 600mm module intervals for fast and accurate assembly Quick Install

Key Features – MR468 Standing Seam Metal Roof Panel

The MR468 standing seam metal roof panel is a cold formed steel roof panel engineered for steel structure building roof applications. It uses a 360° interlocking seam with pre-applied sealant and anti-capillary groove, providing exceptional waterproofing and wind uplift resistance. This makes it the ideal cold formed steel roof panel for harsh weather conditions.

Why Choose Glostar MR468 Standing Seam Metal Roof Panel?

360° Standing Seam Technology
True standing seam metal roof panel with 360° interlocking seam. Pre-applied sealant and anti-capillary groove deliver superior waterproofing and wind uplift resistance.

Related: Standing Seam Solar Roof Panel
Field Assembled On Site
Unlike traditional pre-cut panels, the MR468 is roll-formed on site, allowing unlimited panel length. This field assembled metal roof method reduces installation time, minimizes waste, and eliminates end laps — a key advantage for large-span steel structure building roof applications.
Bare Metal Roof Panel Design
As a bare metal roof panel, the MR468 features a 70mm rib height with transverse stiffening ribs for enhanced load capacity. The prepunched design at 600mm module intervals improves assembly efficiency and precision for steel structure building roof installation.

Related: SolarMetal Roof PVR1000
Sliding Support System
The standing seam metal roof panel incorporates sliding supports at ridge, gable, and other positions, accommodating thermal expansion and contraction of the steel structure building roof system.
Factory Direct – Source Supply
CE certified, smart production with 6,000m² daily capacity. Two manufacturing bases covering 60,000m². Exporting to 50+ countries. Full logistics support with installation guidance.

Related: Site Assembled Roof Panel
Global Delivery & Support
Full logistics support with installation guidance. Free design consultation. Custom specifications available.

Explore Our Complete Building Solutions

Beyond our Standing Seam Metal Roof Panel MR468, Glostar offers a full range of roofing and facade solutions to meet your project needs:

Standing Seam Solar Roof Panel
Standing Seam Solar Roof Panel PV Ready Standing Seam System
SolarMetal Roof PVR1000
SolarMetal Roof PVR1000 PV Ready Metal Roof System
Site Assembled Roof Panel
Site Assembled Roof Panel Field Assembled Metal Roof

Technical Specifications – MR468 Standing Seam Metal Roof Panel

Parameter Specification
Panel Type MR468 Standing Seam Metal Roof Panel
Seam Technology 360° Standing Seam with pre-applied sealant
Installation Method Field assembled (roll-formed on site)
Rib Height 70mm
Effective Width 468mm (utilization up to 78%)
Thickness Options 0.5mm, 0.6mm, 0.7mm
Steel Coating PE, PVDF, HDP, SRP, Mill Finish
Prepunched Modules 600mm intervals for fast assembly
Sliding Support At ridge, gable, and other positions
Waterproofing Anti-capillary groove, pre-applied sealant
Load Capacity Up to 4023 kN/m² (0.7mm at 0.5m span)
Durability Over 30 years

Applications of MR468 Standing Seam Metal Roof Panel

Industrial Warehouses Factories and distribution centers
Logistics Centers Distribution hubs and storage facilities
Sports Halls Gymnasiums and large public buildings
Transportation Hubs Railway stations and airports
Commercial Buildings Large-span steel structure building roof
Industrial Facilities Power plants and manufacturing plants

Frequently Asked Questions

Q: What is the advantage of the 360° standing seam technology?

A: The 360° standing seam with pre-applied sealant and anti-capillary groove provides superior waterproofing and wind uplift resistance, making it ideal for harsh weather conditions.

Q: How is the MR468 panel installed?

A: The MR468 is a field assembled metal roof panel, roll-formed on site for unlimited length, reducing installation time and eliminating end laps.

Q: What is the sliding support system?

A: The sliding support system accommodates thermal expansion and contraction of the steel structure building roof, ensuring long-term performance.

Q: Can I get a free sample?

A: Yes, we provide free samples for qualified projects. Contact us to request your sample.

60,000 m² Smart Factory 6,000 m² Daily Output 50+ Countries Export ISO 9001 & CE CNAS Lab Tested

Get Your MR468 Standing Seam Metal Roof Quote Today

Free Design Consultation · Custom Specifications · Full Installation Support · Factory Direct Price

Email Inquiry WhatsApp Call Now
fmx@glostar.cn  |  +86 135 6230 6065  |  WhatsApp

Glostar New Materials Group Co., Ltd. – China Factory Direct

Key Features
360° Standing Seam Technology
The standing seam metal roof panel uses a 360° interlocking seam with pre-applied sealant and anti-capillary groove, providing exceptional waterproofing and wind uplift resistance. This makes it the ideal cold formed steel roof panel for harsh weather conditions.

MR468 standing seam metal roof panel, cold formed steel roof panel for steel structure building roof with 360° seam lock


Field Assembled On Site


Unlike traditional pre-cut panels, the MR468 standing seam metal roof panel is roll-formed on site, allowing unlimited panel length. This field assembled metal roof method reduces installation time, minimizes waste, and eliminates end laps — a key advantage for large-span steel structure building roof applications.
Bare Metal Roof Panel Design
As a bare metal roof panel, the MR468 features a 70mm rib height with transverse stiffening ribs for enhanced load capacity. The prepunched design at 600mm module intervals improves assembly efficiency and precision for steel structure building roof installation.

MR468 bare metal roof panel roll-formed on site with no length limit, field assembled standing seam roof for steel structure building projects


Sliding Support System
The standing seam metal roof panel incorporates sliding supports at ridge, gable, and other positions, accommodating thermal expansion and contraction of the steel structure building roof system.

MR468 field assembled metal roof panel showing 360° standing seam locking detail, cold formed steel panel for steel structure building roof

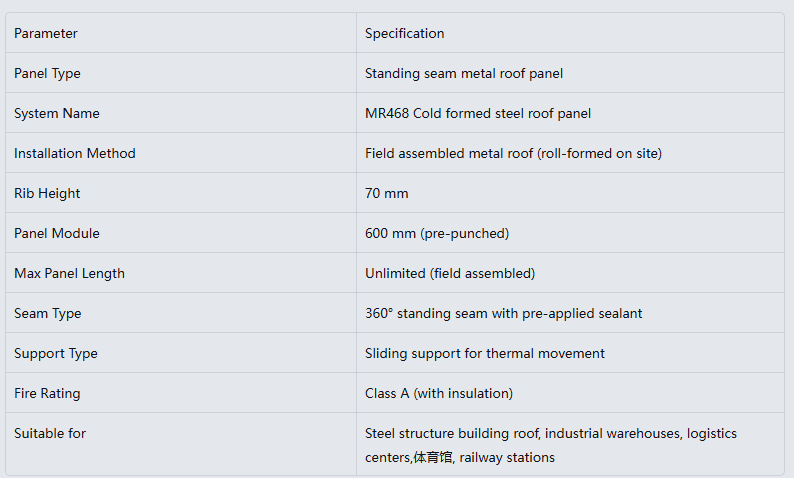

Technical Specifications (MR468)

standing seam metal roof panel


Why Choose Glostar MR468?
· True standing seam metal roof panel – 360° interlocking seam for superior waterproofing
· Cold formed steel roof panel – High strength, lightweight, and durable
· Steel structure building roof optimized – Designed for large-span applications
· Bare metal roof panel – No insulation core, flexible for custom insulation solutions
· Field assembled metal roof – No length limit, fewer joints, faster installation
· Sliding support system – Accommodates thermal expansion and contraction
· Factory direct – CE certified, smart production with 6,000m² daily capacity
· Global delivery – Full logistics support with installation guidance
Applications
· Industrial warehouses and factories
· Logistics centers and distribution hubs
·体育馆 and large public buildings
· Railway stations and transportation hubs
· Commercial buildings with large-span steel structure building roof
Contact Us
Get a quote for your standing seam metal roof panel project. Our team provides free design consultation, custom specifications, and full installation support.



Performance  features

1.Hidden mounting brackets, no screw penetration on the surface

2.The bracket features a sliding structure, which allows a slight movement caused by thermal expansion and contraction of the metal panel after engagement, thereby preventing structural damage caused by stress buildup that cannot be released.

3.Roof panels, fasteners, and other accessories are pre-punched for accurate alignment and neat finishing.

4.The panel features vertical ridges on one side and corresponding grooves on the other for engagement. Ridges are 70mm tall, which gives it a good drainage ability and our adhesive equipment can provide pre-applied sealing adhesive for joints to prevent leakage under any harsh weather conditions

5.Experienced engineers working with equipment that is safely transported in crates to guarantee reliable on-site installation.

Technical Specifications



Material Characteristics Table for MR468 prefabricated roof system


Effective width(mm)

Width at full expansion(mm)

Utilization

 Panelthickness(mm)

 Weight per square meter(kg/m2)

 Sectional moment of inertia(cm4/m)

 Section Modulus(cm5/m)

Wx1

Wx2

468

600

78%

0.5

5.03

34.91

21.67

6.47

0.6

6.04

41.82

25.90

7.76

0.7

7.04

48.74

30.11

9.04


Table of Load without extra support and thermal performance specifics for MR468 prefabricated roof system


Thickness（mm）

Yield strength

Type of support

 Load direction

 Load（KN/m²）/rafter spacing（mm）

0.5

1.0

1.5

2.0

2.5

3.0

0.5

345

 Multi-span

 External force

3701

2785

2274

1969

1761

1608

 Internal force

3196

2536

2216

1969

1761

1608

0.6

 External force

3872

3052

2492

2158

1930

1762

 Internal force

3394

2694

2353

2138

1930

1762

0.7

 External force

4023

3294

2690

2329

2083

1902

 Internal force

3571

2835

2476

2250

2083

1902


Note:strength is calculated under both positive and negative pressure conditions,whereas deflection span is only considered for positive pressures.
The selected deflection-span ratio is L/150.
