High-Quality Sandwich Panels for Modern Construction Welcome to the future of building efficiency. Our premium sandwich panels are engineered to redefine the standards of insulation, durability, and aesthetics. Whether you are constructing a new industrial facility, a cold storage warehouse, or a modern commercial building, our insulated sandwich panel solutions offer the perfect balance of performance and costeffectiveness. Discover why our sandwich panel wall systems are the preferred choice for architects and contractors worldwide.
Sandwich Panels – A1 Fireproof Insulated Wall and Roof Panels
A1/A2 Fire Rating · λ ≤ 0.044 W/(m·K) · 30% faster installation · Free sample and factory direct price
Sandwich PanelsComposite building materialComplete Solution
Fire ResistantA1 non-combustible · 1-4 hoursEN 13501-1
Insulatedλ ≤ 0.044 · Save 10% energyEnergy Saving
WeatherproofTongue and groove sealNo Thermal Bridging
PrefabricatedCNC-cut · Fast installReady to Install

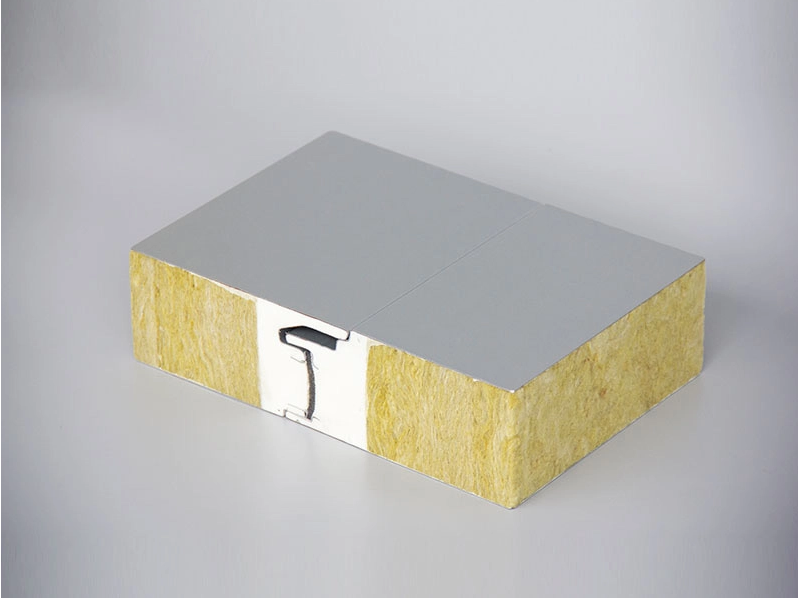

What Are Sandwich Panels?
Sandwich panels are a composite building material consisting of a lightweight insulating core (rock wool, polyurethane, or glass wool) bonded between two high-strength metal facings (galvanized steel or aluminum). This unique structure provides exceptional thermal and acoustic insulation, structural rigidity, and fire resistance. Our sandwich panels are manufactured using state-of-the-art continuous lamination technology, ensuring uniform thickness and superior bonding strength.
Key Features of Our Insulated Sandwich Panel
Superior Insulation Core Choose from high-density rock wool sandwich panel for A-class fire resistance, or PIR/PU foam for optimal thermal efficiency. Our rock wool sandwich panel is non-combustible and provides excellent sound absorption.
High-Strength Facings Made from premium galvanized steel or aluminum, coated with durable PVDF or polyester paint for long-lasting color retention and corrosion resistance.

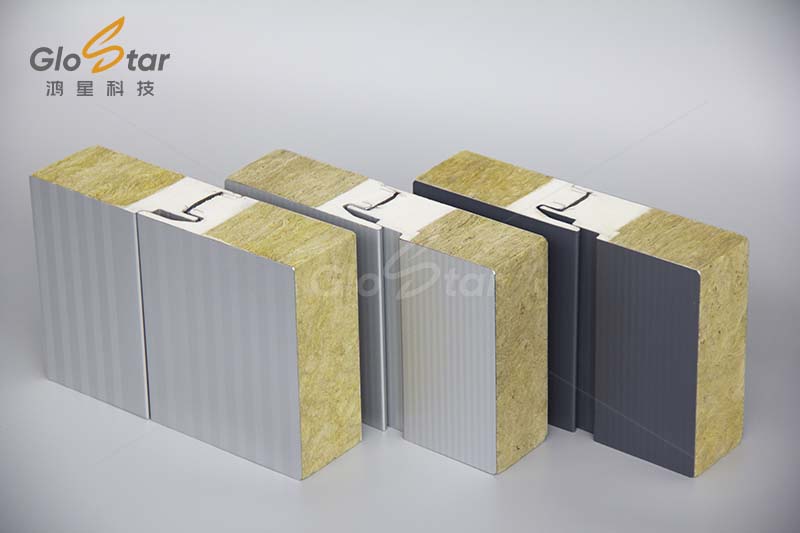

Perfect Seal Design The unique tongue-and-groove joint ensures a tight, weatherproof seal, preventing thermal bridging and air leakage. This makes our sandwich panel wall system highly energy-efficient.
China Factory Direct No middlemen. Complete package: panels, trims, fasteners – all from one supplier. Factory-direct pricing. Export to Nigeria, Kenya, Tanzania, Uganda, Ghana.
Fast InstallationPre-engineered panels are lightweight and easy to handle, significantly reducing construction time and labor costs.
Aesthetic VersatilityAvailable in a wide range of colors, profiles (flat, micro-rib, trapezoidal), and surface textures to match any architectural design.
Long LifespanExcellent resistance to weather, UV radiation, and mechanical impact. Our sandwich panels maintain their appearance and performance for decades.
Competitive PriceFactory direct pricing without compromising on quality. Bulk discounts available for large projects.
Explore Our Complete Building Solutions
Beyond our Sandwich Panels, Glostar offers a full range of roofing and facade solutions to meet your project needs:
Technical Specifications – Rock Wool Sandwich Panel
Parameter
Value
Core material
Rock wool / PU / Glass wool
Core density
80 – 150 kg/m³
Fire rating
A1 / A2 (Non-combustible)
Thickness options
50mm, 75mm, 100mm, 120mm, 150mm
Effective width
1000mm (customizable)
Max length
Up to 15 meters (customizable)
Thermal conductivity (λ)
≤ 0.044 W/(m·K)

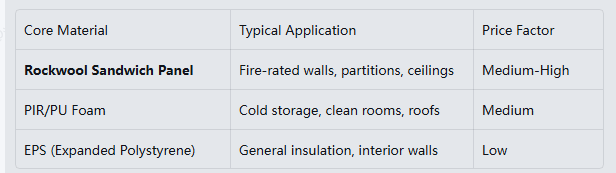

Understanding Sandwich Panel Price
Note: For an accurate sandwich panel price quote, please contact our sales team with your project specifications (thickness, length, quantity, and coating requirements). We provide bulk discounts and customized solutions.
60,000 m² smart factory6,000 m² daily output50+ countries servedISO 9001 and CECNAS Lab Tested
Frequently Asked Questions
Q: What core materials are available for sandwich panels?
A: We offer rock wool (A1 fire rating, excellent sound absorption), PU/PIR (best thermal efficiency), and glass wool (cost-effective insulation).
Q: Can I get a sample before bulk order?
A: Yes, free sample is available for qualified projects. Try before you buy.
Q: What is the fire rating of your sandwich panels?
A: Our rock wool sandwich panels achieve A1 fire rating (non-combustible) under EN 13501-1, with up to 4 hours fire resistance.
Q: How fast can I get panels delivered to Africa?
A: We ship to Nigeria, Kenya, Tanzania, Uganda, Ghana with 15-20 days lead time after deposit.
Get Your Best Sandwich Panel Price Today
Free sample · Factory direct price · Fast shipping to Africa · 24/7 support
Glostar New Materials Group Co., Ltd. – China Factory Direct
What Are Sandwich Panels? Sandwich panels are a composite building material consisting of a lightweight insulating core (like rockwool or polyurethane) bonded between two highstrength metal facings (such as galvanized steel or aluminum). This unique structure provides exceptional thermal and acoustic insulation, structural rigidity, and fire resistance. Our panel sandwiches are manufactured using stateoftheart continuous lamination technology, ensuring uniform thickness and superior bonding strength.
Key Features of Our Insulated Sandwich Panel Our insulated sandwich panel is designed to meet the most demanding construction requirements. Each layer is carefully selected to provide maximum performance. Superior Insulation Core: Choose from high-density rockwool sandwich panel for A-class fire resistance, or PIR/PU foam for optimal thermal efficiency. Our rockwool sandwich panel is non-combustible and provides excellent sound absorption. HighStrength Facings: Made from premium galvanized steel or aluminum, coated with durable PVDF or polyester paint for long-lasting color retention and corrosion resistance. Perfect Seal Design: The unique tongueandgroove joint ensures a tight, weatherproof seal, preventing thermal bridging and air leakage. This makes our sandwich panel wall system highly energy-efficient. Why Choose Our Sandwich Panel Wall System? When you search for a reliable sandwich panel wall solution, you need a product that is easy to install, long-lasting, and cost-effective. Our system delivers on all fronts. Fast Installation: Preengineered panels are lightweight and easy to handle, significantly reducing construction time and labor costs. Aesthetic Versatility: Available in a wide range of colors, profiles (flat, micro-rib, trapezoidal), and surface textures to match any architectural design. Long Lifespan: With excellent resistance to weather, UV radiation, and mechanical impact, our sandwich panels maintain their appearance and performance for decades. Understanding Sandwich Panel Price The sandwich panel price is influenced by several factors, including core material, facing thickness, coating type, and panel dimensions. We offer competitive pricing without compromising on quality.
Note: For an accurate sandwich panel price quote, please contact our sales team with your project specifications (thickness, length, quantity, and coating requirements). We provide bulk discounts and customized solutions. Technical Specifications of Our Rockwool Sandwich Panel Our rockwool sandwich panel is the top choice for projects requiring the highest fire safety standards. It is ideal for industrial plants, warehouses, and logistics centers. Core Density: 80-150 kg/m³ Fire Rating: A1 / A2 (Non-combustible) Thickness Options: 50mm, 75mm, 100mm, 120mm, 150mm Effective Width: 1000mm (customizable) Max Length: Up to 12 meters (customizable) Thermal Conductivity (λ): ≤ 0.044 W/mK Applications of Our Insulated Sandwich Panel Our versatile insulated sandwich panel is suitable for a wide range of applications, making it a one-stop solution for your building envelope needs. Industrial Buildings: Factories, warehouses, workshops Commercial Buildings: Shopping malls, offices, exhibition centers Cold Storage & Logistics: Freezers, refrigerated warehouses, distribution centers Agricultural Buildings: Poultry houses, livestock barns Clean Rooms: Pharmaceutical, electronics, and food processing facilities Get Your Best Sandwich Panel Price Today Don't compromise on quality. Invest in our high-performance sandwich panels for your next project. Our team of experts is ready to help you select the perfect insulated sandwich panel and provide you with a competitive sandwich panel price. Whether you need a standard rockwool saGlostar New Materials Group Co., Ltd. is a comprehensive manufacturer of Sandwich Roof Panel, Rock Wool Roof Panel, PU edge Rock Wool Panel, SolarMetal RoofPVR1000 systemsandSandwich Panel. With two smart manufacturing bases in Shandong and Anhui, covering over 60,000 m², we achieve a daily output of 6,000 m² for sandwich panels and 3,000 m² for metal roof systems. All products are CE certified and exported to over 50 countries. Our Sandwich Panels portfolio covers PU, rock wool, and glass wool cores for both wall and roof applications, with thicknesses from 50mm to 150mm and custom lengths up to 15 meters. They offer excellent thermal insulation (U-value as low as 0.27 W/m²k) and Class A fire rating, suitable for industrial warehouses, commercial buildings, and cleanroom facilities. Contact us for your Sandwich Panels project: www.glostar.net | fmx@glostar.cn
IW PU edge-sealed tongue and groove composite panel deploys the excellent waterproof properties of polyurethane, and by working together with rock wool, the new product manages to avoid the drawbacks associated with traditional panels. These panels excel significantly in waterproofing, thermal insulation, sound absorption, and raw material utilization. They are suitable for interior wall partitions and suspended ceilings.
The Glostar Rockwool Sandwich Panel is a high-performance, factory-prefabricated insulated panel engineered for building wall and roof applications requiring superior fire protection, thermal insulation, and structural strength. Featuring a high-density rockwool core (120-140kg/m³) , the panel delivers Class A fire resistance (non-combustible, GB8624 A1 grade), exceptional thermal insulation with thermal conductivity as low as 0.27 W/m²·k, and excellent acoustic absorption.
The panel construction comprises a durable metal face sheet (steel or aluminum) bonded to a 100% rockwool-filled core using high-strength adhesive. Available in standard thicknesses from 50mm to 250mm, widths from 500mm to 1200mm, and lengths up to 15,000mm, the system supports multiple surface patterns including mirror, corrugated, and mini-corrugated finishes. Unique design features—including reinforced fixing points, spaced back beams, and interlocking joints—ensure structural stability, easy installation, and long-term durability.
Fully compliant with GB/T 23932-2009 standards, the Glostar Rockwool Sandwich Panel is the ideal solution for industrial buildings, commercial facilities, cold storage, and high-rise construction where fire safety, thermal efficiency, and cost-effectiveness are paramount. Factory direct supply. Free sample available. 24/7 technical support.
The Glostar Metal Integrated Insulation Curtain Wall System – Framed Series is a stick-built, high-performance facade solution featuring a site-assembled aluminum or steel frame structure with factory-prefabricated insulated sandwich panels. As part of Glostar's integrated curtain wall family, the Framed Series combines the structural flexibility of traditional framed systems with the thermal performance, fire safety, and aesthetic quality of the MIICW panel system.
The system comprises vertical mullions and horizontal transoms installed on-site to form a grid framework, onto which the A1 fire rated rock wool core sandwich panels are securely fixed and sealed. The thermally broken aluminum frame profiles prevent thermal bridging, while the panels deliver thermal conductivity as low as 0.34 W/m²·k, Grade 9 wind load resistance, and surface flatness within ≤0.5mm/m. The panel exterior face features PVDF, HDP, PE, or SMP coatings for long-term weather resistance and color stability.
The Framed Series offers exceptional design flexibility—supporting large panel dimensions up to 2,000mm x 8,000mm, custom RAL colors, diverse surface textures, and integration with glazing systems for hybrid metal-and-glass facades. It is fully compliant with GB/T 23932-2009, JG/T 453-2019, and JGJ 133-2001 standards. Factory direct panel supply. Free design support. 24/7 global assistance.
NS Standardized Metal Insulation Curtain Wall System, Standardized Metal Curtain Wall, Insulated Metal Facade System, Thermal Break Curtain Wall, A2 Fire Rated Cladding, High-end Metal Building Envelope, Glostar
Starting from anti-corrosion aluminum honeycomb core and high-strength aluminum sheets, ELKOM honeycomb metal curtain wall is made under high temperature and pressure with specialized adhesives. This composite panel is lightweight, strong, and has a perfectly smooth surface. Moreover, its seam width, materials, and colors also come with various options, enabling the display of diverse wall surface effects. Honeycomb panel technology, which was widely applied in the aerospace industry, has been adopted in the construction sector for its unique functionality and aesthetics.
The Glostar Metal Integrated Insulation Curtain Wall System – FP is a factory-prefabricated sandwich panel solution engineered for high-rise buildings, healthcare facilities, pharmaceutical campuses, and public infrastructure projects. As a leading manufacturer, Glostar integrates structural support, thermal insulation, and aesthetic finishing into a single composite panel with a three-layer construction: PVDF or LUXACOTE coated aluminum face sheets, a high-density hydrophobic rock wool core, and a protective metal back sheet.
The rock wool core delivers Class A surface fire resistance (GB8624 A2 non-combustible) and fire resistance up to 60 minutes at 80mm thickness. The thermally broken aluminum frame design minimizes heat conduction, achieving thermal conductivity as low as 0.34 W/m²·k and supporting 75% building energy conservation standards. Independent testing confirms Grade 9 wind load resistance (GB/T 15227) and surface flatness within ≤0.5mm/m—eliminating the deformation issues common in single-layer aluminum veneer systems.
Available in thicknesses from 50mm to 120mm, with RAL Classic color options and PVDF/POLYESTER/LUXACOTE coatings, the FP system employs a socket-and-plug interlocking assembly that reduces on-site installation time by up to 60%. It meets GB/T 23932-2009, JG/T 453-2019, and JGJ 133-2001 standards, with E1 formaldehyde emission compliance for indoor applications. Factory direct pricing. Free design support. 24/7 global technical assistance.
The HP Metal Curtain Wall System is a premium insulated sandwich panel solution engineered for high-rise buildings, industrial facilities, and public infrastructure. Featuring a non-combustible rock wool core (A1 fire rated up to 4 hours) and PVDF-coated aluminum face sheets, this prefab curtain wall system delivers exceptional thermal insulation (U-value as low as 0.32 W/m²·k), superior wind load resistance (Grade 9), and outstanding structural rigidity with surface flatness ≤0.5mm/m.
As a factory-direct metal cladding manufacturer, we provide complete turnkey solutions from design to installation. Our interlocking panel system enables rapid on-site assembly, reducing construction time by up to 30% compared to traditional aluminum veneer systems. Available in 50-120mm thicknesses, custom RAL colors, and multiple coating finishes (PVDF/LUXACOTE/POLYESTER), the HP system meets GB/T 23932-2009 and JGJ 133-2001 standards. Free samples available. 24/7 global technical support.
The Glostar Metal Integrated Insulation Curtain Wall System – Modular Series is a factory-prefabricated, high-performance sandwich panel solution engineered for fast-track construction projects. As part of Glostar's integrated curtain wall family, the Modular Series combines the core advantages of the MIICW system—Class A surface fire resistance (GB8624 A2 non-combustible), high-density hydrophobic rock wool core, and thermally broken aluminum frames—with the construction efficiency of modular, pre-engineered panel units.
The system features a three-layer composite construction: PVDF, HDP, PE, or SMP coated aluminum face sheets, a rock wool insulation core, and a protective metal back sheet, all factory-bonded using two-component polyurethane adhesive. The system achieves thermal conductivity as low as 0.34 W/m²·k, Grade 9 wind load resistance per GB/T 15227, surface flatness within ≤0.5mm/m, and 30+ year durability. The socket-and-plug interlocking assembly enables rapid on-site installation, reducing construction time by up to 60% compared to traditional aluminum veneer systems.
Available in thicknesses from 50mm to 120mm, with RAL Classic color options and PVDF/HDP/PE/SMP coating selections. Fully compliant with GB/T 23932-2009, JG/T 453-2019, and JGJ 133-2001 standards, with E1 formaldehyde emission compliance. Factory direct pricing. Free design support. 24/7 global assistance.
The Glostar Metal Integrated Insulation Curtain Wall System – VF (Ventilation Function) is a factory-prefabricated, naturally ventilated facade solution that integrates operable opening vents into high-performance insulated metal sandwich panels. Engineered for high-rise office buildings, commercial towers, and public facilities, the VF system combines the core advantages of the Metal Integrated Insulation Curtain Wall series—Class A surface fire resistance (GB8624 A2 non-combustible), rock wool core insulation (U-value as low as 0.34 W/m²·k), and Grade 9 wind load resistance—with a built-in natural ventilation function that improves indoor air quality and reduces mechanical ventilation energy costs.
The system features a distinctive recessed unit design with solid opening vents positioned on the inner face, while ventilation louvers are integrated into the exterior projection—achieving a seamless architectural appearance without compromising facade aesthetics. The thermally broken aluminum frame, multi-seal rubber gaskets, and dense rock wool filling ensure excellent air tightness, water tightness, and acoustic insulation. Available in customized sizes, RAL Classic colors, and multiple coating options (PVDF/LUXACOTE/POLYESTER), the VF system supports three natural ventilation principles: single-sided ventilation, cross ventilation, and stack ventilation.
As a factory-direct prefabricated system, it reduces on-site installation time by up to 60% compared to traditional aluminum veneer + frame-assembled operable vents. Factory direct pricing. Free design support. 24/7 global technical assistance.
steel, stainless steel, or aluminum) bonded to insulation cores such as rock wool, glass-magnesium rock wool, gypsum rock wool, aluminum honeycomb, or magnesium oxysulfate through continuous lamination or hot-press molding. Prefab clean rooms offer excellent airtightness, fire resistance (A-class), corrosion resistance, easy cleaning, and modular flexibility. Common product types include hand-fabricated clean room panels (featuring tongue-and-groove or box-rib connections for high structural integrity), machine-formed clean room panels (cost-effective solutions for standard applications), and demountable wall panel systems (allowing quick reconfiguration). Read More
Sandwich panel rockwool (also known as IW rock wool sandwich panels, PU edge-sealed rock wool panels, or rock wool roof panels) are high-performance composite building components consisting of two metal face sheets (color coated steel, aluminum‑magnesium‑manganese alloy, or stainless steel) bonded to a rock wool insulation core through a continuous lamination or hot‑press molding process. These panels offer excellent fire resistance (A‑class), thermal insulation, soundproofing, high surface flatness, and easy installation. Read More
Clean room panels (also known as hand-fabricated clean room panels, machine-formed clean room panels, or rock wool clean room panels) are specialized composite building components designed for controlled environments requiring strict particle control, hygiene, and environmental stability. These panels consist of metal face sheets (color coated steel, stainless steel, or aluminum) bonded to an insulation core such as rock wool, glass-magnesium rock wool, gypsum rock wool, aluminum honeycomb, or magnesium oxysulfate through a continuous lamination or hot-press molding process. Read More
