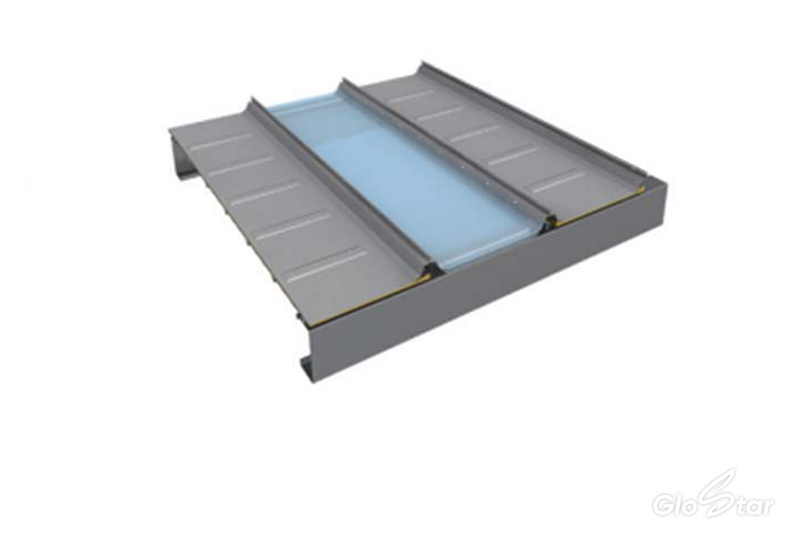

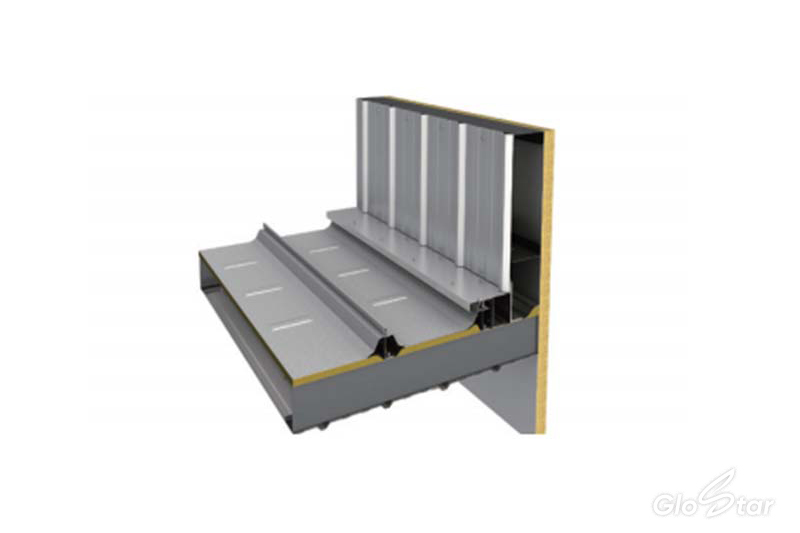

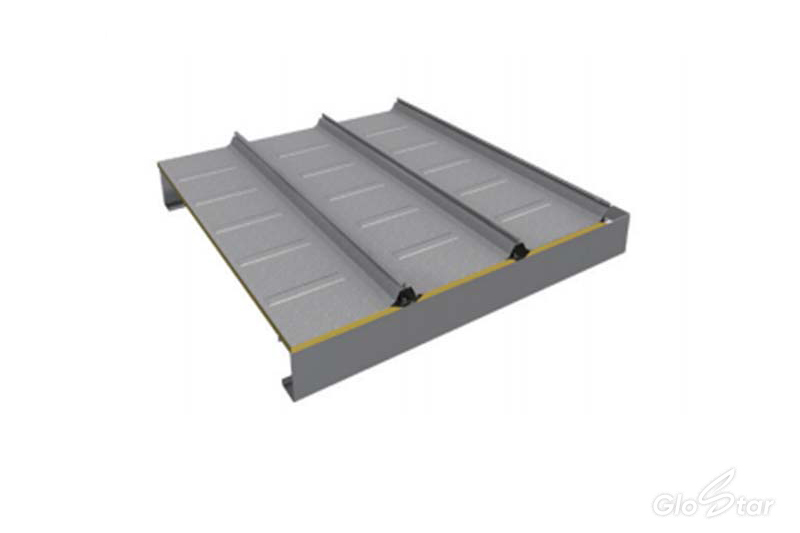

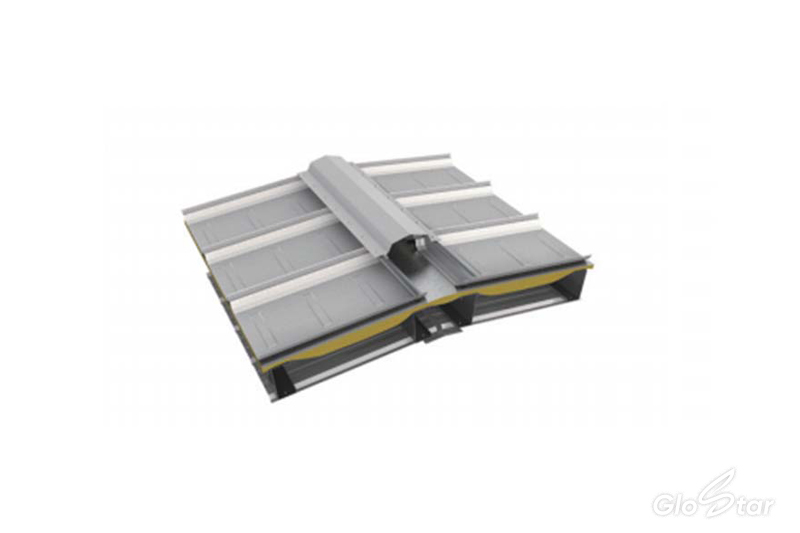

MR468 metal prefabricated roof system consists of composite panels, which are made of roll-forming metal sheet (galvanized steel sheet, Super Galum, and color-coated steel sheet) and thermal insulation materials, back sheets, and other accessories. The system is suitable for roofs with a span of over 20m.
Product Description

Performance  features

1.Hidden mounting brackets, no screw penetration on the surface

2.The bracket features a sliding structure, which allows a slight movement caused by thermal expansion and contraction of the metal panel after engagement, thereby preventing structural damage caused by stress buildup that cannot be released.

3.Roof panels, fasteners, and other accessories are pre-punched for accurate alignment and neat finishing.

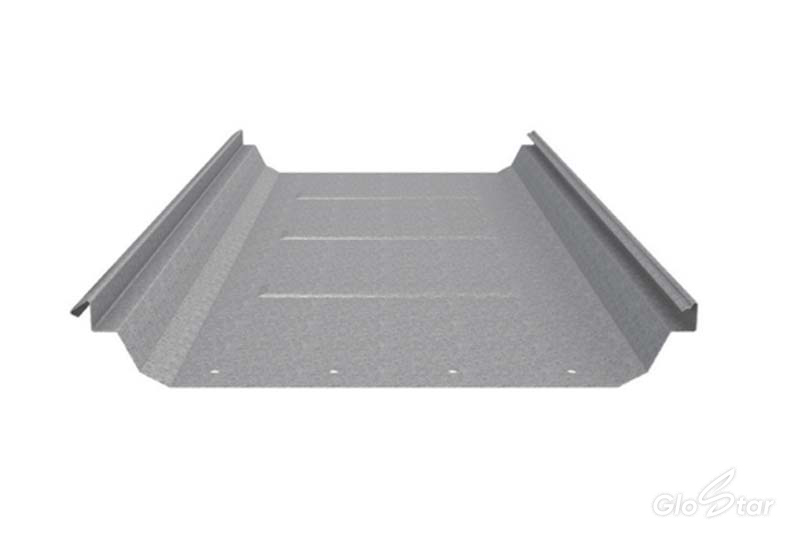

4.The panel features vertical ridges on one side and corresponding grooves on the other for engagement. Ridges are 70mm tall, which gives it a good drainage ability and our adhesive equipment can provide pre-applied sealing adhesive for joints to prevent leakage under any harsh weather conditions

5.Experienced engineers working with equipment that is safely transported in crates to guarantee reliable on-site installation.

Technical Specifications


Material Characteristics Table for MR468 prefabricated roof system


Effective width(mm)

Width at full expansion(mm)

Utilization

 Panelthickness(mm)

 Weight per square meter(kg/m2)

 Sectional moment of inertia(cm4/m)

 Section Modulus(cm5/m)

Wx1

Wx2

468

600

78%

0.5

5.03

34.91

21.67

6.47

0.6

6.04

41.82

25.90

7.76

0.7

7.04

48.74

30.11

9.04


Table of Load without extra support and thermal performance specifics for MR468 prefabricated roof system


Thickness（mm）

Yield strength

Type of support

 Load direction

 Load（KN/m²）/rafter spacing（mm）

0.5

1.0

1.5

2.0

2.5

3.0

0.5

345

 Multi-span

 External force

3701

2785

2274

1969

1761

1608

 Internal force

3196

2536

2216

1969

1761

1608

0.6

 External force

3872

3052

2492

2158

1930

1762

 Internal force

3394

2694

2353

2138

1930

1762

0.7

 External force

4023

3294

2690

2329

2083

1902

 Internal force

3571

2835

2476

2250

2083

1902


Note:strength is calculated under both positive and negative pressure conditions,whereas deflection span is only considered for positive pressures.
The selected deflection-span ratio is L/150.
