Product Description

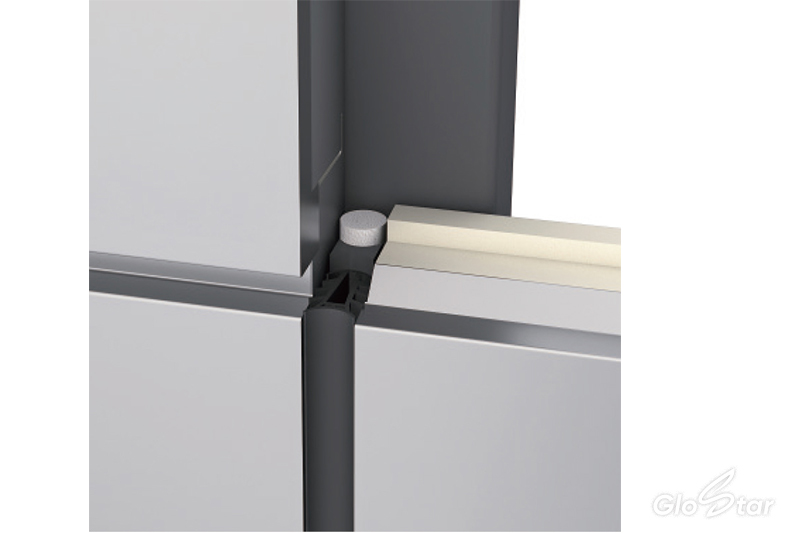

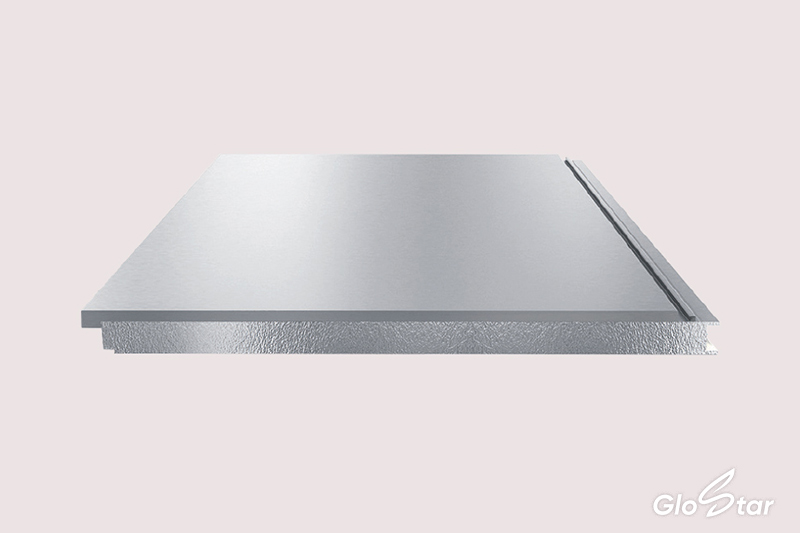

       The Polyjoy HW industrial building curtain wall cladding is made from rock wool or PU edge-wrapped rock wool as the core material and high-end color-coated steel sheets as the surface material. It is manufactured in a continuous production line followed by folding processes to form a box-shaped structure with the metal sheet enclosing the two non-jointing sides. This series of products inherits the excellent performance of metal composite claddings in the field of construction while showcasing the functionality and visual effects of prefabricated metal curtain walls. The overall system structure features purposefully designed nodes and allows reasonable and efficient installation. Moreover, a strong sense of aesthetics and modernity also serves as an advantage, achieving a perfect combination of thermal insulation and decorative functions for building walls.

 Performance  features

  •  Insulating & Fire-Resistant Core

     Meets the standards and requirements for green and energy-efficient buildings.

  •  Fully Encapsulated Core Material

     Effectively ensures the long-term durability and service life of the core material.

  •  Superior System Flatness

     Presents an elegant, streamlined appearance, fully realizing the aesthetic effect of a metal curtain wall

  •  Enhanced Panel Strength

     Offers high bending resistance and superior mechanical performance of the wall system.

Technical specifications

Material Characteristics Table for HW Industrial Building Curtain Wall Cladding

Size (mm)


Standard size:1000

Optional width:500-1200

Length:<15000

Standardthickness:50,75,100,150

Surface pattern

Mirror surface

Ripple-like corrugation

Engrossed

Mini corrugation

Skin thickness (mm)

Front steel sheet：0.6-0.8

Back steel sheet:0.4-0.6

Front aluminum sheet:0.7-1.0

Back aluminum sheet:0.4-0.7

Joint width (mm)

                                                              20

Core material

Rock wool,PU and rock wool

PU and glass wool

Core material density (Kg/m3)

Glass wool:64

Rockwool:120-140

Flammability

Class A

Table of Load without extra support and thermal performance specifics for HW Industrial Building Curtain Wall Cladding

Core material


Thickness（mm）

Type of support

Load（KN/m²）/rafter spacing(mm)

Panel weight（Kg/m²）

Thermal conductivity（W/m²k）

0.5

1.0

1.5

2.0

2.5

3.0

Rock wool

50

Single-span /multi-span

5652

4217

3490

3018

2674

2408

15.88

0.76

75

7470

5605

4662

4050

3604

3259

18.72

0.53

100

9079

6827

5689

4951

4414

3996

21.56

0.40

150

11882

8927

7434

6465

5759

5212

27.24

0.27

Glass wool

50

Single-span /multi-span

5543

4082

3340

2857

2507

2237

13.32

0.52

75

7339

5442

4480

3854

3399

3048

14.88

0.39

100

8925

6635

5475

4720

4172

3747

16.44

0.33

150

11677

8673

7150

6159

5439

4882

19.55

0.27

Note: Calculations in the table are based on the following assumptions: rock wool of a density of 120Kg/m3, glass wool of a density of 64kg/m3,thickness of front sheet 0.6mm, thickness of the back sheet 0.5mm, deflection span ratio L/100.
