The HW Insulated Metal Curtain Wall Panel is a high-performance, factory-prefabricated building cladding solution engineered for industrial, commercial, and public buildings requiring superior fire protection, thermal insulation, and structural strength. Featuring rockwool (120-140kg/m³) or glass wool (64kg/m³) core materials with an optional PU edge-wrapped design, the panel delivers Class A fire resistance (non-combustible, GB8624 A1 grade) and exceptional thermal insulation with thermal conductivity as low as 0.27 W/m²·k.
The insulated metal curtain wall panel comprises durable steel or aluminum face sheets bonded to a 100% mineral wool-filled core, with the metal sheet forming a box-shaped structure that fully encapsulates the core material. Unique design features—including reinforced fixing points, spaced back beams, and precision interlocking joints—ensure structural stability, easy installation, and long-term durability. The HW insulated metal curtain wall panel is available in standard thicknesses from 50mm to 250mm, widths from 500mm to 1200mm, and lengths up to 15,000mm, with multiple surface patterns including mirror, corrugated, and mini-corrugated finishes. The system achieves a perfect combination of thermal insulation and decorative function, delivering an elegant, streamlined appearance that fully realizes the aesthetic effect of a modern metal curtain wall.
China Factory DirectA1 Fire RatedRockwool / Glass Wool CoreU-Value 0.27Fully EncapsulatedFree SampleCE Certified

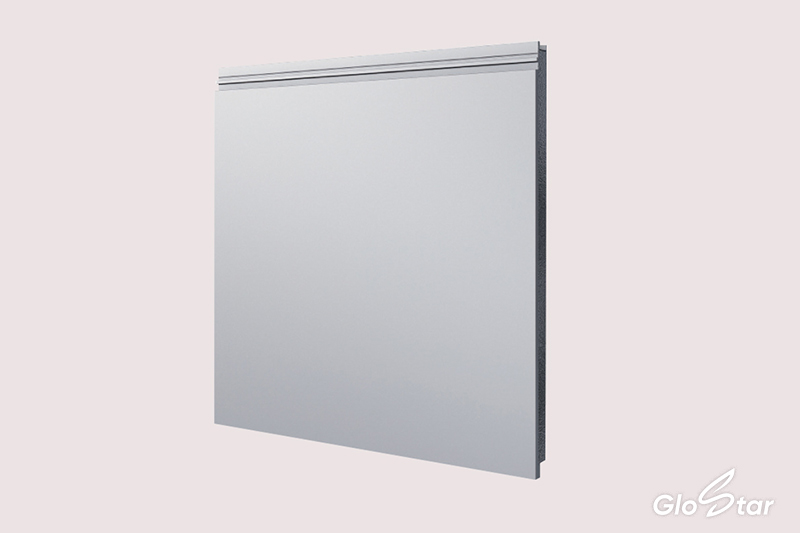

HW Insulated Metal Curtain Wall Panel – A1 Fire Rated Rockwool/Glass Wool Core
A1 Fire Rated · Rockwool 120-140kg/m³ · Glass Wool 64kg/m³ · U-Value 0.27 W/m²·k · Lengths up to 15,000mm · Free Design Consultation
A1 Fire RatedNon-combustible rockwool/glass wool core. Class A fire resistance per GB8624 A1 grade.Maximum Safety
Fully Encapsulated CoreMetal box-shaped enclosure protects core material for long-term durability.Protected
High Thermal InsulationThermal conductivity as low as 0.27 W/m²·k. Meets green building standards.Energy Saving
Superior System FlatnessEliminates oil-canning and deformation. Clean, modern facade aesthetic.Flawless Finish
Enhanced Panel StrengthLoad capacity up to 11,882 N/m². High bending resistance.Heavy Duty
Product Overview – HW Insulated Metal Curtain Wall Panel
The HW Insulated Metal Curtain Wall Panel is a high-performance, factory-prefabricated building cladding solution engineered for industrial, commercial, and public buildings requiring superior fire protection, thermal insulation, and structural integrity. Manufactured on a continuous production line followed by precision folding processes, the panel forms a box-shaped structure with metal sheets enclosing the non-jointing sides—creating a fully encapsulated core that ensures long-term durability and performance.
Available with rockwool (120-140kg/m³), glass wool (64kg/m³), or PU edge-wrapped rockwool core materials, the HW insulated metal curtain wall panel delivers Class A fire resistance (non-combustible, GB8624 A1 grade), exceptional thermal performance with thermal conductivity as low as 0.27 W/m²·k, and outstanding acoustic absorption. The system features purposefully designed nodes that allow reasonable and efficient installation, while the strong sense of aesthetics and modernity achieves a perfect combination of thermal insulation and decorative function for building walls.
Key Features
Insulating & Fire-Resistant Core The HW insulated metal curtain wall panel features a mineral wool core—available in rockwool (120-140kg/m³) or glass wool (64kg/m³)—that meets the standards and requirements for green and energy-efficient buildings. The core material is naturally non-combustible, achieving Class A fire resistance (GB8624 A1 grade), the highest classification for building materials.
Fully Encapsulated Core Material The HW insulated metal curtain wall panel is manufactured with metal sheets fully enclosing the core material on all sides, effectively ensuring the long-term durability and service life of the core material. This box-shaped construction prevents moisture ingress, protects against physical damage, and maintains consistent thermal performance over decades of service.
Superior System Flatness The HW insulated metal curtain wall panel delivers exceptional surface flatness, presenting an elegant, streamlined appearance that fully realizes the aesthetic effect of a metal curtain wall. This superior flatness eliminates the oil-canning and deformation issues common in single-layer metal panels, ensuring a clean, modern facade that maintains its visual impact over time.
Enhanced Panel Strength The HW insulated metal curtain wall panel offers high bending resistance and superior mechanical performance for the wall system. The box-shaped construction, combined with precision-engineered interlocking joints and reinforced fixing points, provides exceptional structural rigidity. Load-bearing capacity ranges from 2,237 to 11,882 N/m² depending on panel thickness, core material, and support spacing.
PU Edge-Wrapped Option The HW insulated metal curtain wall panel is available with a PU (polyurethane) edge-wrapped design that seals the exposed edges of the mineral wool core. This optional feature provides: enhanced moisture resistance at panel joints, improved thermal performance by preventing edge heat loss, added protection during transport and installation, and extended service life in humid or coastal environments.
Factory Direct – Source Supply Competitive pricing, transparent supply chain, quality control at source. Free samples available. 24/7 global support. Full logistics support with installation guidance.
Q: What core material options are available for the HW panel?
A: The HW panel is available with rockwool (120-140kg/m³), glass wool (64kg/m³), or PU edge-wrapped rockwool core materials.
Q: What is the fire rating of the HW panel?
A: The HW panel achieves Class A fire resistance (GB8624 A1 non-combustible)—the highest classification for building materials.
Q: What is the advantage of the fully encapsulated core?
A: The fully encapsulated metal box-shaped construction prevents moisture ingress, protects against physical damage, and maintains consistent thermal performance over decades of service.
Q: Can I get a free sample?
A: Yes, we provide free samples for qualified projects. Contact us to request your sample.
1,000,000+ m² Annual CapacityItalian Production Technology50+ Countries ExportISO 9001 & CECNAS Lab Tested
Get Your HW Curtain Wall Panel Quote Today
Free Design Consultation · Custom Specifications · Full Installation Support · Factory Direct Price
Glostar New Materials Group Co., Ltd. – China Factory Direct
The Polyjoy HW industrial building curtain wall cladding is made from rock wool or PU edge-wrapped rock wool as the core material and high-end color-coated steel sheets as the surface material. It is manufactured in a continuous production line followed by folding processes to form a box-shaped structure with the metal sheet enclosing the two non-jointing sides. This series of products inherits the excellent performance of metal composite claddings in the field of construction while showcasing the functionality and visual effects of prefabricated metal curtain walls. The overall system structure features purposefully designed nodes and allows reasonable and efficient installation. Moreover, a strong sense of aesthetics and modernity also serves as an advantage, achieving a perfect combination of thermal insulation and decorative functions for building walls.
Performance features
Insulating & Fire-Resistant Core
Meets the standards and requirements for green and energy-efficient buildings.
Fully Encapsulated Core Material
Effectively ensures the long-term durability and service life of the core material.
Superior System Flatness
Presents an elegant, streamlined appearance, fully realizing the aesthetic effect of a metal curtain wall
Enhanced Panel Strength
Offers high bending resistance and superior mechanical performance of the wall system.
Technical specifications
Material Characteristics Table for HW Industrial Building Curtain Wall Cladding
Size (mm)
Standard size:1000
Optional width:500-1200
Length:<15000
Standardthickness:50,75,100,150
Surface pattern
Mirror surface
Ripple-like corrugation
Engrossed
Mini corrugation
Skin thickness (mm)
Front steel sheet：0.6-0.8
Back steel sheet:0.4-0.6
Front aluminum sheet:0.7-1.0
Back aluminum sheet:0.4-0.7
Joint width (mm)
20
Core material
Rock wool,PU and rock wool
PU and glass wool
Core material density (Kg/m3)
Glass wool:64
Rockwool:120-140
Flammability
Class A
Table of Load without extra support and thermal performance specifics for HW Industrial Building Curtain Wall Cladding
Core material
Thickness（mm）
Type of support
Load（KN/m²）/rafter spacing(mm)
Panel weight（Kg/m²）
Thermal conductivity（W/m²k）
0.5
1.0
1.5
2.0
2.5
3.0
Rock wool
50
Single-span /multi-span
5652
4217
3490
3018
2674
2408
15.88
0.76
75
7470
5605
4662
4050
3604
3259
18.72
0.53
100
9079
6827
5689
4951
4414
3996
21.56
0.40
150
11882
8927
7434
6465
5759
5212
27.24
0.27
Glass wool
50
Single-span /multi-span
5543
4082
3340
2857
2507
2237
13.32
0.52
75
7339
5442
4480
3854
3399
3048
14.88
0.39
100
8925
6635
5475
4720
4172
3747
16.44
0.33
150
11677
8673
7150
6159
5439
4882
19.55
0.27
Note: Calculations in the table are based on the following assumptions: rock wool of a density of 120Kg/m3, glass wool of a density of 64kg/m3,thickness of front sheet 0.6mm, thickness of the back sheet 0.5mm, deflection span ratio L/100.
HW Insulated Metal Curtain Wall Panel
Product Overview
The HW Insulated Metal Curtain Wall Panel is a high-performance, factory-prefabricated building cladding solution engineered for industrial, commercial, and public buildings requiring superior fire protection, thermal insulation, and structural integrity. Manufactured on a continuous production line followed by precision folding processes, the panel forms a box-shaped structure with metal sheets enclosing the non-jointing sides—creating a fully encapsulated core that ensures long-term durability and performance.
Available with rockwool (120-140kg/m³), glass wool (64kg/m³), or PU edge-wrapped rockwool core materials, the HW insulated metal curtain wall panel delivers Class A fire resistance (non-combustible, GB8624 A1 grade), exceptional thermal performance with thermal conductivity as low as 0.27 W/m²·k, and outstanding acoustic absorption. The system features purposefully designed nodes that allow reasonable and efficient installation, while the strong sense of aesthetics and modernity achieves a perfect combination of thermal insulation and decorative function for building walls.
The HW insulated metal curtain wall panel is available in standard thicknesses from 50mm to 250mm, widths from 500mm to 1200mm, and lengths up to 15,000mm, with multiple surface patterns including mirror, ripple corrugation, engrossed, and mini corrugation finishes. Whether for industrial facilities, commercial complexes, or institutional buildings, the HW insulated metal curtain wall panel delivers the ideal balance of safety, efficiency, and visual impact.
Key Features
Insulating & Fire-Resistant Core
The HW insulated metal curtain wall panel features a mineral wool core—available in rockwool (120-140kg/m³) or glass wool (64kg/m³)—that meets the standards and requirements for green and energy-efficient buildings. The core material is naturally non-combustible, achieving Class A fire resistance (GB8624 A1 grade), the highest classification for building materials. Unlike PU or EPS foam cores that melt and release toxic smoke under high temperatures, the mineral wool core maintains structural integrity during fire events, providing critical protection for building occupants and assets.
Fully Encapsulated Core Material
The HW insulated metal curtain wall panel is manufactured with metal sheets fully enclosing the core material on all sides, effectively ensuring the long-term durability and service life of the core material. This box-shaped construction prevents moisture ingress, protects against physical damage, and maintains consistent thermal performance over decades of service. The optional PU edge-wrapped design further enhances moisture resistance at panel joints, making the HW insulated metal curtain wall panel particularly suitable for humid or coastal environments.
Superior System Flatness
The HW insulated metal curtain wall panel delivers exceptional surface flatness, presenting an elegant, streamlined appearance that fully realizes the aesthetic effect of a metal curtain wall. This superior flatness eliminates the oil-canning and deformation issues common in single-layer metal panels, ensuring a clean, modern facade that maintains its visual impact over time. The result is a building envelope that enhances architectural expression while delivering robust technical performance.
Enhanced Panel Strength
The HW insulated metal curtain wall panel offers high bending resistance and superior mechanical performance for the wall system. The box-shaped construction, combined with precision-engineered interlocking joints and reinforced fixing points, provides exceptional structural rigidity. Load-bearing capacity ranges from 2,237 to 11,882 N/m² depending on panel thickness, core material, and support spacing, making the HW insulated metal curtain wall panel suitable for a wide range of building applications.
PU Edge-Wrapped Option
The HW insulated metal curtain wall panel is available with a PU (polyurethane) edge-wrapped design that seals the exposed edges of the mineral wool core. This optional feature provides:
Enhanced moisture resistance at panel joints
Improved thermal performance by preventing edge heat loss
Added protection during transport and installation
Extended service life in humid or coastal environments
Fire safety, structural strength, lightweight design
Healthcare facilities
A1 fire rating, hygienic surfaces, thermal comfort
Logistics centers
Durable, insulated enclosure, cost-effective
Agricultural buildings
Weather resistance, easy cleaning, thermal control
Educational campuses
Safe, energy-efficient, modern appearance
For project-specific technical recommendations, custom sizing, core material selection, or sample requests, contact the HW engineering team directly. We respond within 24 hours to all inquiries.
