Transition Panel



The Glostar Rockwool Sandwich Panel is a high-performance, factory-prefabricated insulated panel engineered for building wall and roof applications requiring superior fire protection, thermal insulation, and structural strength. Featuring a high-density rockwool core (120-140kg/m³) , the panel delivers Class A fire resistance (non-combustible, GB8624 A1 grade), exceptional thermal insulation with thermal conductivity as low as 0.27 W/m²·k, and excellent acoustic absorption.

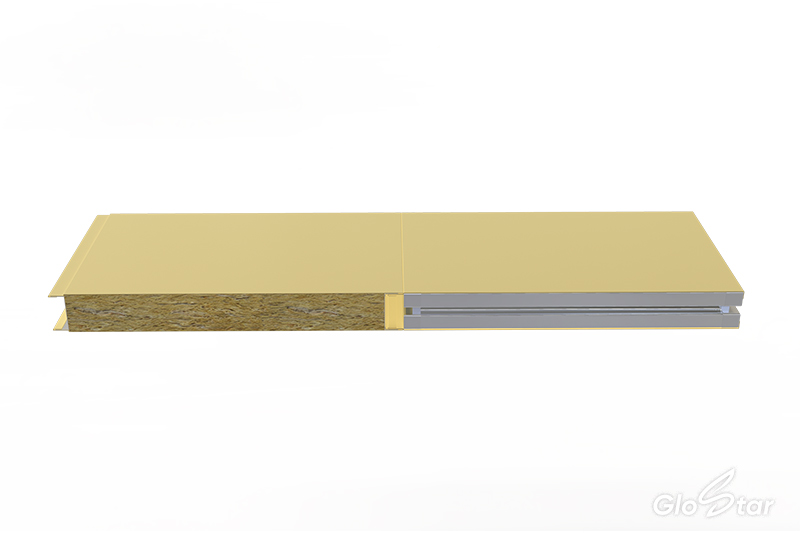

The panel construction comprises a durable metal face sheet (steel or aluminum) bonded to a 100% rockwool-filled core using high-strength adhesive. Available in standard thicknesses from 50mm to 250mm, widths from 500mm to 1200mm, and lengths up to 15,000mm, the system supports multiple surface patterns including mirror, corrugated, and mini-corrugated finishes. Unique design features—including reinforced fixing points, spaced back beams, and interlocking joints—ensure structural stability, easy installation, and long-term durability.

Fully compliant with GB/T 23932-2009 standards, the Glostar Rockwool Sandwich Panel is the ideal solution for industrial buildings, commercial facilities, cold storage, and high-rise construction where fire safety, thermal efficiency, and cost-effectiveness are paramount. Factory direct supply. Free sample available. 24/7 technical support.

NS Standardized Metal Insulation Curtain Wall System, Standardized Metal Curtain Wall, Insulated Metal Facade System, Thermal Break Curtain Wall, A2 Fire Rated Cladding, High-end Metal Building Envelope, Glostar



The Glostar Metal Integrated Insulation Curtain Wall System – FP is a factory-prefabricated sandwich panel solution engineered for high-rise buildings, healthcare facilities, pharmaceutical campuses, and public infrastructure projects. As a leading manufacturer, Glostar integrates structural support, thermal insulation, and aesthetic finishing into a single composite panel with a three-layer construction: PVDF or LUXACOTE coated aluminum face sheets, a high-density hydrophobic rock wool core, and a protective metal back sheet.

The rock wool core delivers Class A surface fire resistance (GB8624 A2 non-combustible) and fire resistance up to 60 minutes at 80mm thickness. The thermally broken aluminum frame design minimizes heat conduction, achieving thermal conductivity as low as 0.34 W/m²·k and supporting 75% building energy conservation standards. Independent testing confirms Grade 9 wind load resistance (GB/T 15227) and surface flatness within ≤0.5mm/m—eliminating the deformation issues common in single-layer aluminum veneer systems.

Available in thicknesses from 50mm to 120mm, with RAL Classic color options and PVDF/POLYESTER/LUXACOTE coatings, the FP system employs a socket-and-plug interlocking assembly that reduces on-site installation time by up to 60%. It meets GB/T 23932-2009, JG/T 453-2019, and JGJ 133-2001 standards, with E1 formaldehyde emission compliance for indoor applications. Factory direct pricing. Free design support. 24/7 global technical assistance.

The Glostar Metal Integrated Insulation Curtain Wall System – Modular Series is a factory-prefabricated, high-performance sandwich panel solution engineered for fast-track construction projects. As part of Glostar's integrated curtain wall family, the Modular Series combines the core advantages of the MIICW system—Class A surface fire resistance (GB8624 A2 non-combustible), high-density hydrophobic rock wool core, and thermally broken aluminum frames—with the construction efficiency of modular, pre-engineered panel units.

The system features a three-layer composite construction: PVDF, HDP, PE, or SMP coated aluminum face sheets, a rock wool insulation core, and a protective metal back sheet, all factory-bonded using two-component polyurethane adhesive. The system achieves thermal conductivity as low as 0.34 W/m²·k, Grade 9 wind load resistance per GB/T 15227, surface flatness within ≤0.5mm/m, and 30+ year durability. The socket-and-plug interlocking assembly enables rapid on-site installation, reducing construction time by up to 60% compared to traditional aluminum veneer systems.

Available in thicknesses from 50mm to 120mm, with RAL Classic color options and PVDF/HDP/PE/SMP coating selections. Fully compliant with GB/T 23932-2009, JG/T 453-2019, and JGJ 133-2001 standards, with E1 formaldehyde emission compliance. Factory direct pricing. Free design support. 24/7 global assistance.

The Glostar Metal Integrated Insulation Curtain Wall System – VF (Ventilation Function) is a factory-prefabricated, naturally ventilated facade solution that integrates operable opening vents into high-performance insulated metal sandwich panels. Engineered for high-rise office buildings, commercial towers, and public facilities, the VF system combines the core advantages of the Metal Integrated Insulation Curtain Wall series—Class A surface fire resistance (GB8624 A2 non-combustible), rock wool core insulation (U-value as low as 0.34 W/m²·k), and Grade 9 wind load resistance—with a built-in natural ventilation function that improves indoor air quality and reduces mechanical ventilation energy costs.

The system features a distinctive recessed unit design with solid opening vents positioned on the inner face, while ventilation louvers are integrated into the exterior projection—achieving a seamless architectural appearance without compromising facade aesthetics. The thermally broken aluminum frame, multi-seal rubber gaskets, and dense rock wool filling ensure excellent air tightness, water tightness, and acoustic insulation. Available in customized sizes, RAL Classic colors, and multiple coating options (PVDF/LUXACOTE/POLYESTER), the VF system supports three natural ventilation principles: single-sided ventilation, cross ventilation, and stack ventilation.

As a factory-direct prefabricated system, it reduces on-site installation time by up to 60% compared to traditional aluminum veneer + frame-assembled operable vents. Factory direct pricing. Free design support. 24/7 global technical assistance.
