Metal Composite Panel Partition Wall System

loading

Metal Composite Panel Partition Wall System Metal Composite Panel Partition Wall System
Metal Composite Panel Partition Wall System Metal Composite Panel Partition Wall System
Metal Composite Panel Partition Wall System Metal Composite Panel Partition Wall System
Metal Composite Panel Partition Wall System Metal Composite Panel Partition Wall System

Metal Composite Panel Partition Wall System

Availability:
Quantity:
Inquire Add to Basket

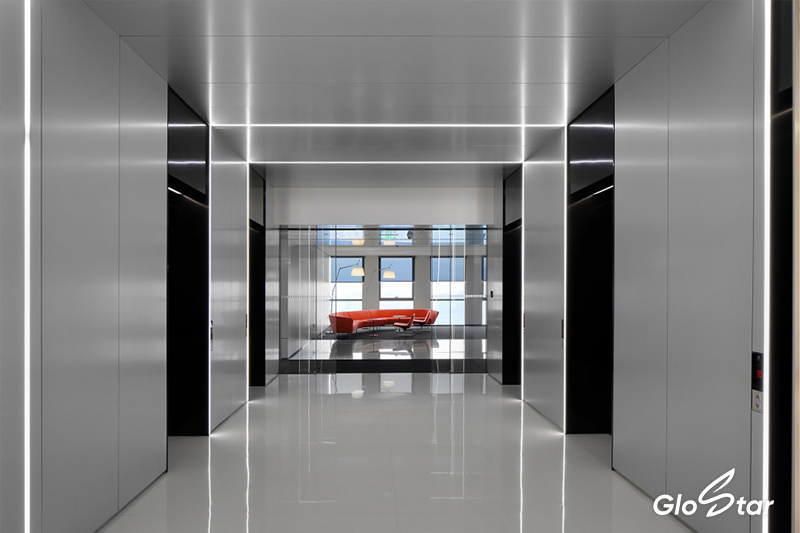

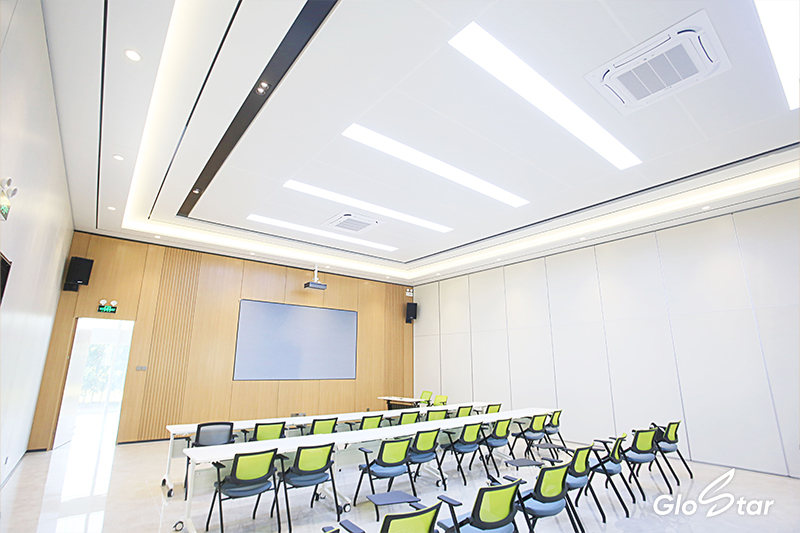

Metal Composite Partitions enable rational division of interior space, enhancing both comfort and aesthetic appeal. These high-quality, flexible, and functional systems serve as connectors and dividers between different areas. Featuring rigid surfaces and clean lines, the partitions can be customized to meet various environmental needs while maintaining visual appeal and excellent tactile quality.
Product Description

Technical specifications

Parameter

Specification

Finished Thickness

90–300 mm (Customizable)

Dimensions

Width: 925–1200 mm; Height: 2500/2700/3000/3500/4000/4500 mm

Substrate Material

Pre-mixed paint steel coil; Zinc layer ≥ 60 g/m²

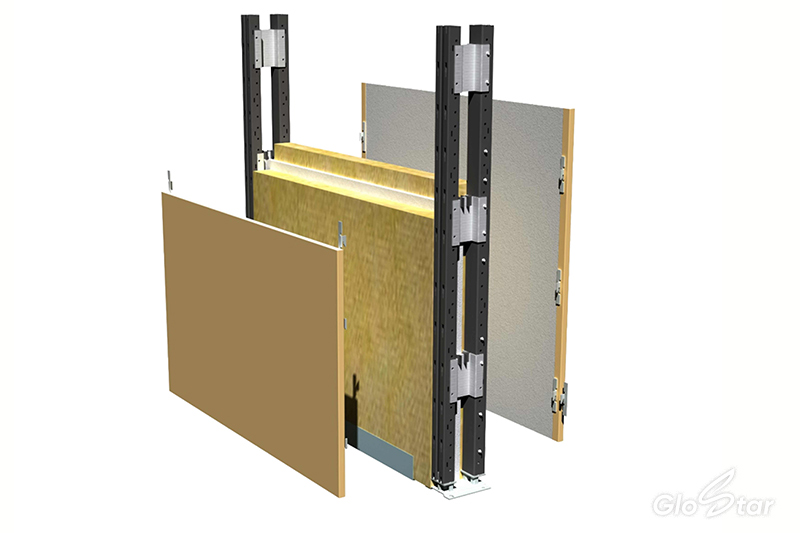

Inner Lining Material

High-strength steel corrugated sheet (0.18 mm) or 12.2 mm fire-resistant gypsum board

Adhesive

High-strength two-component polyurethane adhesive (Henkel, Germany)

Surface Treatment

Coating thickness ≥ 25 µm; Pencil hardness ≥ 2H (Standard: Q/320115GML02-2007)

Connection Joist

Fixed with suspended joist system

Product Performance

Fire-resistant, non-combustible, high strength, formaldehyde-free, durable, antibacterial, easy to clean; particularly suitable for public areas and facilities

Fire Resistance

Complies with GB/T 9978.1-2008 "Fire resistance test for building elements" – 2 hours or more

Environmental Performance

Materials are reusable; production, use, and recycling processes pose no harm to the ecosystem
